DS8000 Service Documentation Version 7.5

MAP6103 No MC 2, rebuilding MC 1 LIC bundle VRMF 6.0.0.xxx, no critical console data backup DVD

Use this MAP to reload the management console LIC bundle VRMF 6.0.0.xxx when a critical console data backup DVD is not available.

MAP6103 Section-1

Procedure

Ensure that you were sent here from MAP6100 Reloading the management console licensed internal code (LIC)..
Note: All of the storage facilities that are managed by this HMC will need to be power-cycled as part of the "HMC genesis" process that will occur at the end of this procedure.
Will the customer allow you to power-cycle each managed storage facility as part of this procedure?
- Yes, continue at the next step.
- No, stop and contact your next level of support.

Table 1 lists the four CDs that you need to reload the HMC code. The CDs are in the HMC Recovery Kit.

Note: A kit number is on each CD, below the IBM logo (for example KIT: 23R0133). Ensure that all of the CDs have the same kit number.

Table 1. HMC Recovery Kit for LIC bundle VRMF 6.0.0.xxx: CDs required to reload the HMC code
Order of use	CD label	Description	Installation time (approximate)
1	HMC Base Recovery CD #1 Version: SQ4_BASE_050413.2¹	Base operating system and base HMC code	18 minutes
2	HMC Base Recovery CD #2 Version: SQ4_BASE_050413.2¹	Base operating system and base HMC code	8 minutes
3	HMC Base Recovery CD #3 Version: SQ4_BASE_050413.3¹	Base operating system and base HMC code	4 minutes
4	HMC Extensions Recovery CD	Unique code support for 2107	2 minutes
Notes
¹ - The version number shown is an example.

Do you have a copy of the most recent version of the customer configuration worksheet?
Note: The customer configuration worksheet should be stored in the Rack-1 document enclosure.
- Yes, go to step 6.
- No, you must retrieve the configuration information. Go to the next step.
Can you successfully log on to the HMC that you are repairing?
- Yes, perform the procedure in MAP6105 Display and record the HMC customer configuration and network settings information, return here, and then go to the next step.
- No, you must contact the customer to get a new copy of the information before continuing at the next step.
Determine the level of code for the LIC bundle that is currently installed on this HMC by logging in to the HMC that you are repairing.
Can you login successfully?
- Yes, go to the next step.
- No, go to step 8.
Display the level of HMC code.
1. In the HMC Navigation area, under the Management Environment, expand the HMC (identified by hostname).
2. Open Licensed Internal Code Maintenance > HMC Code Update.
3. In the right content area, the Status section displays the level of HMC code.
4. Go to step 9.
Consider the following information when trying to determine the level of HMC code and then go to the next step:
- If this HMC has VPN network access to download LIC bundles, a set of Update CDs might not be stored in Rack-1. Even if a set of Update CDs is stored in Rack-1, the code level of those CDs might not match the code level that is installed.
- If this HMC does not have VPN network access, one or more sets of Update CDs might be stored in Rack-1.
- Refer to customer account records that track the installed level of LIC bundles.
- Contact your next level of support to see if they can determine the code level by referring to call home MRPD reports, PE packages, or other means.
Shut down and power off the management console. See MAP6640 Shutting down, restarting, and logging off the management console..
At the rear of the management console server, disconnect the following three Ethernet cables. See Figure 1 (X335 server) or Figure 2 (X336 server) or Figure 3 (X3550 server).
- DS8000® network cable, black (eth0)
- DS8000 network cable, gray (eth3)
- Customer network cable (eth2)
Later, after you have reloaded the HMC code and all of the network settings have been restored, you will reconnect the cables.

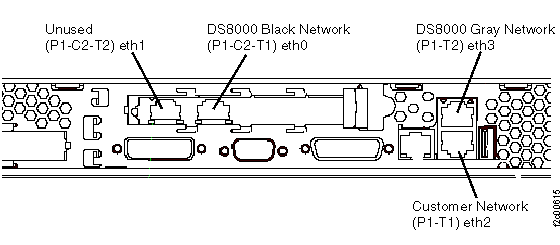

Figure 1. Ethernet connectors on the rear of the X335 management console server

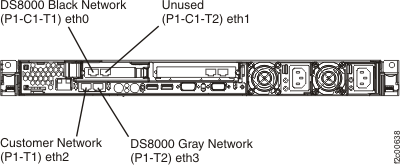

Figure 2. Ethernet connectors on the rear of the X336 management console server

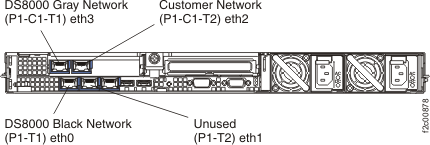

Figure 3. Ethernet connectors X3550 management console server (rear view)
Power on the management console and immediately insert the HMC Base Recovery CD #1. The management console powers on, boots from the CD, and then displays the Hardware Management Console - Hard Disk Install / Upgrade screen. This takes about two minutes.
Note: If the HMC does not boot from the CD, use the X335/X336 Hardware Maintenance Manual and Troubleshooting Guide or the IBM® System x3550 Type 7978 and 1913 Problem Determination and Service Guide to isolate the problem. The guide is on the DS8000 service documentation CD. (The CD is part of the ship group).
Press F8 to continue the Install/Recovery process.
The Hard Disk Restore/Reload screen is immediately displayed. Ensure that it includes the following text and then press F1:
```
Press F1 to continue with the RESTORE / RELOAD process.
Press ESC to exit the process.
```
In about 18 minutes, the CD is ejected and the message Phase 1 of the Restore process is Complete is displayed. Follow the on-screen instructions to insert the HMC Base Recovery CD #2. Press Enter.

In about 8 minutes, the CD is ejected and the following screen is displayed.

Please select one of the following options:
1 -- Install additional software from CD media
2 -- Finish the installation at a later time
Please enter your selection:

Type 1 and press Enter. When prompted, insert the HMC Base Recovery CD #3. Press Enter.

In about 4 minutes, the CD is ejected and the following screen is displayed.
```
Please select one of the following options:
1 -- Install additional software from CD media
2 -- Finish the installation at a later time
Please enter your selection:
```
Type 1 and press Enter. When prompted, insert the HMC Extensions Recovery CD. Press Enter.

In about 2 minutes, the following screen is displayed.

Please select one of the following options:
1 -- Restore critical console data from DVD media
     Only select this option if you are performing a Hard Disk Recover.
2 -- Finish the installation
Please enter your selection:

Note: Some LIC bundle levels will not eject the CD. To manually open the media tray and remove the CD, insert a paper clip through the pinhole in the DVD-RAM drive.

Type 2 to finish the installation and then press Enter.
The management console reboots and the following screen is displayed:
```
       WELCOME TO THE
   HMC ROLE SELECTION MENU
ENTER A MENU OPTION FROM LIST
 1) ASSIGN HMC AS PRIMARY
 2) ASSIGN HMC AS SECONDARY
99) EXIT
```
1. Ensure MC 1 is on the label on the front of the keyboard/display tray.
2. Type 1 and then press Enter.
3. When prompted, type Yes to confirm and then press Enter.
4. When prompted, type the appropriate keyboard selection menu number and then press Enter.
  Note: If you do not make a selection within one minute, it will default to menu option 1 and then continue to the management console logon screen.
Log on to the management console with user ID CE and password serv1cece.
Was the logon successful?
- Yes, go to the next step.
- No, begin problem isolation at Start here.
Use MAP6106 Restoring the HMC customer communication and network settings to restore the HMC communication and customer resources settings, return here, and then go to the next step.
Reboot the HMC to activate the settings. See MAP6640 Shutting down, restarting, and logging off the management console.
At the rear of the management console server, reconnect ONLY the customer network cable (eth2). See Figure 1 (X335 server) or Figure 2 (X336 server) or Figure 3 (X3550 server).
Earlier in this MAP, you determined the level of code (LIC bundle) that needs to be reinstalled on this HMC.
Note: If you are not sure whether the code level of the managed storage facilities matches the code level of the update CDs, contact your next level of support. Most HMC LIC bundle levels are downward compatible if one or more managed storage facilities are still at an older bundle level.

Does the bundle level of the recovery CD set that you used to rebuild the HMC boot match the bundle level of the HMC before it was rebuilt?
- Yes, go to step 26.
- No, go to the next step.
Use the CDA process to update the HMC LIC code now. The HMC will be rebooted as part of the CDA process.
Note: Do not use the CDA pre-verify process. It will fail because the private network Ethernet cables are still disconnected from the HMC.
At the rear of the management console server, reconnect the black DS8000 network cable (eth0) and the gray DS8000 network cable (eth3). See Figure 1 (X335 server) or Figure 2 (X336 server) or Figure 3 (X3550 server).
Contact your next level of support so they can remotely connect and perform an "HMC genesis."
Note: All of the storage facilities that are managed by this HMC will automatically be power-cycled during "HMC genesis."
Ensure both of the DS8000 private network connections (Interface eth0 and Interface eth3) are working properly. Use the Network Topology Tool to ensure that the LPAR nodes are displayed. See MAP7000 Entry point for storage facility private network problems.
