Exchange the CEC enclosure disk drive backplane

Before you begin

Icon for electrostatic discharge wrist strapUse approved ESD procedures to prevent damage.

Attention:
  • This is not a stand-alone procedure. Customer disruption and damage to the hardware might occur if microcode and power boundaries are not in the proper conditions for this service action.
  • If you were sent here by a serviceable event FRU repair, the microcode and power boundaries have already been set.
  • If you were not sent here by a serviceable event FRU repair, see MAP1230 Replace a FRU without using a serviceable event.
Notes:
  • All the cables and FRUs to be removed must be uniquely identified so they can be reinstalled correctly.
  • If an installed earthquake resistance kit prevents you from accessing this FRU, refer to MAP1600.
Related tasks:
How to start the service information center

Remove the CEC enclosure disk drive backplane

Procedure

  1. Use a replacement part with a valid DS8000® part number to ensure it has the proper firmware, VPD, and/or configuration to ensure it is compatible with the DS8000 service procedures. Attempting to use a generic POWER7® server FRU might fail and require next level of support to recover.
  2. All parts being removed must be marked or identified so they can be installed into their original locations.
    Note: Failure to do this can extend the service duration and may require next level of support assistance.
  3. Use the CEC enclosure front and rear blue identify LEDs to determine the CEC enclosure to be repaired. Both blue LEDs should be solidly lit.
    • CEC control panel blue identify LED Callout label 1, as shown in Figure 1.
    • CEC enclosure rear blue identify LED Callout label 2, as shown in Figure 1.
    Note: If both the front and rear CEC enclosure identify LEDs are not lit, use the location code listed in the serviceable event FRU list. See MAP1245 Finding FRUs by using location codes.
    Figure 1. CEC identify blue LEDs, front and rear
    CEC identify blue LEDs, front and rear
  4. If the CEC enclosure to be repaired is beneath the management console you are logged into:
    1. Move the management console laptop from the service position Callout label 2 to the DC-UPS service position Callout label 1, as shown in Figure 2. Refer to Management console service positions (Model 961).
    2. Push the now empty management console tray Callout label 2 fully into the rack. See Figure 2. This allows access to the top and rear of the CEC enclosure.
    Figure 2. Alternate service position
    Alternate service position
  5. Verify the CEC enclosure is in the power-off state. See Figure 3.
    1. At the rear of the CEC enclosure, view both CEC enclosure power supply DC GOOD LEDs.
    2. Are both DC GOOD (output) LEDs Callout label 2 blinking?
    Figure 3. CEC enclosure power supply LEDs (Model 961)
    CEC enclosure power supply LEDs (Model 961)
  6. Disconnect the power cables (E1-J1 and E2-J1) from the CEC with the DC Good LEDs blinking. See Figure 4.
    Note: The CEC enclosure power supply LEDs continue to blink for up to 20 seconds while internal power is discharged.
    1. Each power cable is looped once around the CEC enclosure power supply handle and secured with a cable tie.
    2. Remove the cable tie, unplug the cable and unwrap it from the handle.
    Figure 4. Location codes for the CEC enclosure (rear view) (Model 961)
    Location codes for the CEC enclosure (rear view) (Models 961)
  7. Observe the CEC enclosure control panel green power present icon Callout label B. See Figure 5.
    • If it is off, go to the next step.
    • If it is slow blinking, the CEC enclosure is still in the power-off state. DO NOT CONTINUE. Ensure that you have unplugged the power cables.
    Figure 5. CEC enclosure control panel
    CEC enclosure control panel
  8. At the front of the CEC enclosure, remove the two screws Callout label A (if present) that secure the CEC enclosure Callout label B to the rack. See Figure 6.
    Figure 6. Preparing the CEC enclosure for service position
    Preparing the CEC enclosure for service postion
  9. Pull the CEC partially enclosure out (10 centimeters, 4 inches) to allow the front cover to be removed in a later step. Hold the CEC enclosure release latches Callout label A down on both the left and right sides, and pull the CEC partway out. See Figure 7.
    Figure 7. Pulling the CEC enclosure out to the service position
    Pulling the CEC enclosure fully out to the service position
  10. Remove the CEC enclosure front cover. See Figure 8.
    1. The front cover is held on by two post spring clips on the left and right ends.
    2. Gently pull on the lower lip of the cover at the left and then right ends.
      Note: Do not pull in the middle of the cover.

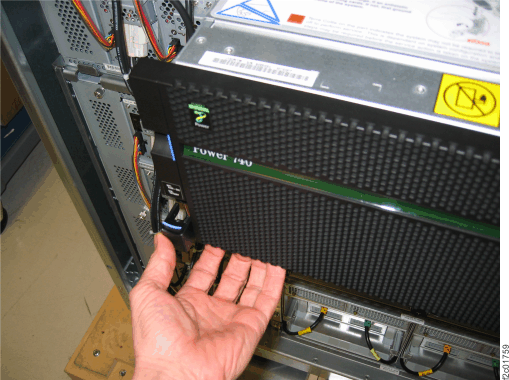

    Figure 8. Removing the CEC enclosure front cover
    Removing the CEC enclosure front cover
  11. Remove one disk drive at a time from the old disk drive backplane and install it in the same slot in the new disk drive backplane.
    1. Grasp the disk drive, supporting the bottom, and slide it out of the old disk enclosure. See Figure 9.
    2. Slide the disk drive all the way in and push the disk drive handle in until it locks, as shown in Figure 10.
    3. If the disk drive is installed in the incorrect slot, it may require next level of support to correct.
    Figure 9. Removing the disk drive
    Removing the disk drive
    Figure 10. Installing the disk drive
    Installing the disk drive
  12. Remove the disk drive backplane. See Figure 11.
    1. Grasp the disk drive backplane blue latches and pull them outward.
    2. Grasp the handles and pull the disk drive backplane toward you.

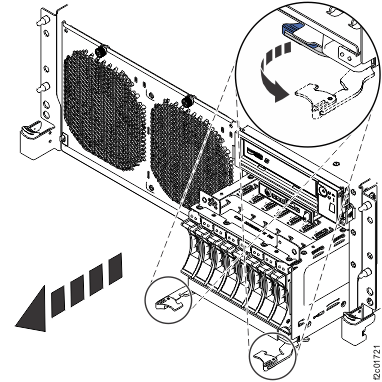

    Figure 11. Removing the disk drive backplane
    Removing the disk drive backplane

Install the CEC enclosure disk drive backplane

Procedure

  1. Install the new disk drive backplane which already contains the disk drives. See Figure 11. With the disk drive backplane latches extended, push the disk drive backplane into the system, and then close the latches until they lock.
  2. Install the front cover. See Figure 8.
  3. Push the CEC enclosure fully into the rack until it latches in place.
  4. If the CEC enclosure was held in place with screws, install them now.
  5. Connect the power cables (E1-J1, E2-J1) to both CEC enclosure power supplies. See Figure 12.
    Note: The power supply "DC Good" green LED should blink. See Figure 3.
    1. Loop the power cable around the power supply handle and connect it.
    2. Secure the cable with the cable tie.

    Is the DC Good green LED blinking on one or both power supplies?

    • Yes, go to the next step.
    • No, ensure the power cables are properly connected. If no cable problem is found, call the next level of support.
    Figure 12. CEC enclosure power supply cable loops
    CEC enclosure power supply cable loops
  6. Wait up to 5 minutes for the CEC enclosure control panel green power present LED [B] to slow blink, as shown in Figure 5.
    Note: This ensures the CEC enclosure is in the power-off state.

    Is the green LED blinking?

    • Yes, go to the next step.
    • No, ensure the CEC enclosure power supplies are fully seated. The possible failing FRUs are the CEC enclosure system backplane, I2C interface card and cables, and control panel. You can also call the next level of support.
  7. Return the management console laptop to the standard service position Callout label B on the slide-out tray. See Figure 1.
    1. Slide the empty management console tray Callout label B out to the service position.
    2. Move the laptop assembly from the DC-UPS service position Callout label A to the standard service position Callout label B. Carefully route the cable bundle.
    3. Push the DC-UPS service position rails fully in.
  8. Exit this service information center parts exchange procedure and return to the procedure that sent you here.
