Exchange the rack operator panel LED assembly

Before you begin

Icon for electrostatic discharge wrist strapUse approved ESD procedures to prevent damage.

Attention:
  • This is not a stand-alone procedure. Customer disruption and damage to the hardware might occur if microcode and power boundaries are not in the proper conditions for this service action.
  • If you were sent here by a serviceable event FRU repair, the microcode and power boundaries have already been set.
  • If you were not sent here by a serviceable event FRU repair, see MAP1230 Replace a FRU without using a serviceable event.
Notes:
  • All the cables and FRUs to be removed must be uniquely identified so they can be reinstalled correctly.
  • If an installed earthquake resistance kit prevents you from accessing this FRU, refer to MAP1600.
Related tasks:
How to start the service information center

Remove the rack operator panel LED assembly

Procedure

  1. The rack operator panel LED assembly can be hot-plugged.
  2. At the front of the rack, open the front cover.
  3. Disconnect the cable Callout label 1 from the rack operator panel LED assembly. See Figure 1.
  4. Remove the screw Callout label 2 and then remove the rack operator panel LED assembly. See Figure 1.

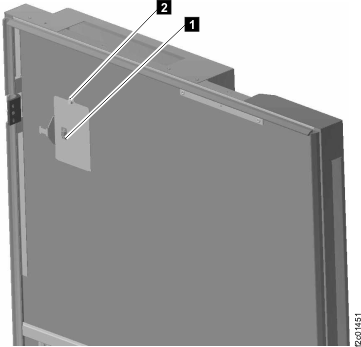

    Figure 1. Rack operator panel LED assembly
    Rack operator panel LED assembly

Install the rack operator panel LED assembly

Procedure

  1. Install the LED assembly in place with the screw. See Figure 1.
  2. Connect the cable to the LED assembly. See Figure 1.
  3. Exit this service information center parts exchange procedure and return to the procedure that sent you here.
