Routing and connecting the rack power control cables to the RPC cards

Procedure

  1. You will perform the following steps for one expansion rack at a time, starting with Rack-2. If you have Rack-3 or Rack-4 to install, you will be sent back here later.
  2. At the rear of the expansion rack being installed, find the power control cable that connects to the upper and lower DC-UPS connector E1-J6. See Figure 1. The loose end of the cable has a gray label.
    Figure 1. Location codes for the DC-UPS (Models 961, 96E) (rear)
    Location codes for the DC-UPS (Models 961, 96E) (rear)
  3. Route the J6 expansion rack power control cables to the Rack-1 RPC cards in the rear upper right.
    1. Route the expansion rack power control cables Callout label 2 through the frame to frame access holes near the rear cover upper hinges and on top of the sheet metal cable tray. See Figure 2.
    2. In Rack-1, route the expansion rack power control cables Callout label 1 on top of the sheet metal tray Callout label 2 and to the RPC cards Callout label 3. See Figure 3. Do not connect the cables until directed in the next step.

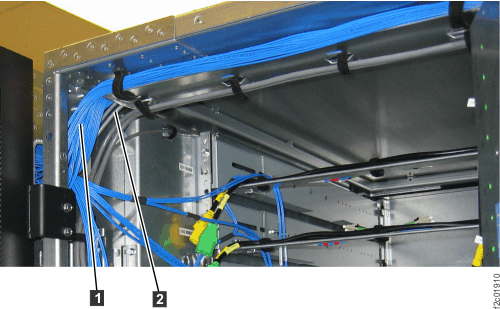

      Figure 2. Routing rack-to-rack power control and FCAL cables on top of the sheet metal tray
      Routing rack-to-rack power control and FCAL cables on top of the sheet metal tray
      Figure 3. Routing expansion rack power control cables through Rack-1 on top of sheet metal tray to RPC cards
      Routing expansion rack power control cables through Rack-1 on top of sheet metal tray to RPC cards
  4. Use Table 1 and Figure 4 to determine which RPC-1 card connector to plug the expansion rack power control cable to. Connect the cable to the RPC card.
    Table 1. Rack number and RPC-1 connector locations
    From DC-UPS connector Ex-J6 in rack number: To Rack-1 RPC-1 card (upper card)
    2 C1-J203
    3 C1-J205
    4 C1-J207

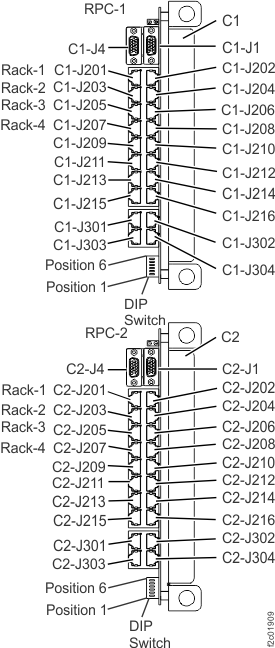

    Figure 4. Location codes for the RPC cards (Model 961)
    Location codes for the RPC cards (Model 961)
  5. At the rear of the expansion rack being installed, find the power control cable that connects to the upper and lower DC-UPS connector E1-J7 (Figure 1). The loose end of the cable has a yellow label.
  6. Route the J7 cable from the prior step to the rear upper right of Rack-1 (the location of the RPC cards).
  7. Use Table 2 and Figure 4 to determine which RPC-2 card connector to plug the expansion rack power control cable to. Connect the cable to the RPC card.
    Table 2. Rack number and RPC-2 connector locations
    From DC-UPS connector Ex-J7 in rack number: To Rack-1 RPC-2 card (lower card)
    2 C2-J203
    3 C2-J205
    4 C2-J207
  8. Are you installing a business class rack?
  9. Are you here to install the cables for Rack-2?
