Installing the interrack decorative covers kit

Complete the steps in this section for each expansion rack that you just installed.

1. Locate the interrack decorative covers kit. It contains two side interrack covers.
2. Assemble each of the side interrack covers as follows:
   1. Open the hinged side interrack cover  1  so that it is straight. See the following figure.
   2. Loosen the two nuts  2  on the threaded studs next to the hinge points.
   3. Slide the plate  3  so that it engages both studs.
   4. Tighten both nuts.
      Figure 1. Assembling the later version of the interrack decorative side covers

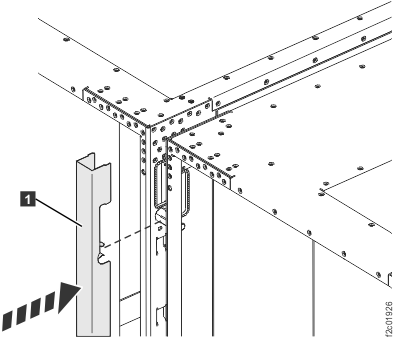

3. Install each of the two interrack side covers  1  by pushing the cover into place over the interrack spacing studs. Take care not to interfere with any interrack cables. See Figure 2.
   Figure 2. Installing the interrack decorative cover


4. Continue with Finish installation and cleanup.
