Disconnecting Rack-2 I/O enclosure power

Use these procedures to disconnect the power input cables from each I/O enclosure for Rack-2.

1. You must do the following step to ensure the installation does not fail.
2. At the bottom front of Rack-2, disconnect both power input cables  2  (Figure 1) from each I/O enclosure.

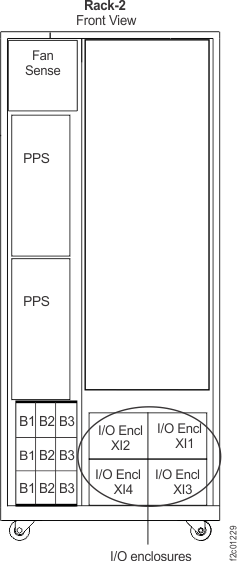

   Figure 1. Rack-2 I/O enclosures (front view)


   Figure 2. I/O enclosure power supply, power connector, and handle


3. Go to the next section.
