DS8000 Service Documentation Version 7.5

Storage enclosure part numbers, Models 961, 96E (30 SSD slots)

Information about storage enclosure parts is listed below. Use Table 1 as a directory.

Note: The following part numbers are the most recent for this version of the Parts Catalog. Your storage facility or serviceable event FRU list might contain an older or newer part number. The parts ordering system recognizes all valid part numbers and will automatically substitute an available part number as needed.

Table 1. Start here, storage enclosure parts, 30 SSD slots (Models 961, 96E)
Part name	Figure
Cables, PCIe (FRU includes cable and PCIe storage interface card)	Table 5
Solid state disk (SSD)	Figure 1
Solid state disk (SSD) dummy module	Figure 1
Storage enclosure midplane	Figure 1
Storage enclosure power supply	Figure 2
Storage enclosure RAID controller card	Figure 2
All other parts	(Find the appropriate figure below)

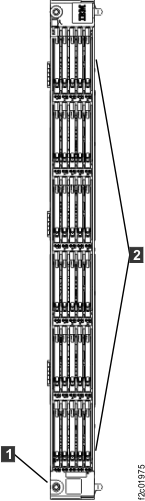

Figure 1. Storage enclosure parts, front

Table 2. Storage enclosure parts, front, 30 SSD slots (Models 961, 96E)
Index	Part name	CCIN (note 1)	Part number	Allowable substitute CCIN(s) (note 2)
1	Storage enclosure midplane	50BE	41T9088	none
2	Bezel assembly (not shown)	N/A	41T8767	N/A
2	Flash drive (SSD) slot baffle	BHSB	41T8208	N/A
2	Flash drive (SSD), 400 GB	U401	98Y4524	Contact next level of support
2	Flash drive (SSD), 400 GB, category 2 (note 2)	U402	98Y6303	U401
Notes: Important, read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable. When you order a part number (P/N) reported in a serviceable event or call home record, please check if the parts ordering system has a conditional substitute for DS8000® series. CCINs that are in parentheses are reported by earlier levels of the LIC bundle. For flash drives (SSDs) with multiple CCINs for same size, replace with a different CCIN only if that CCIN appears in the column Allowable substitute CCIN(s).

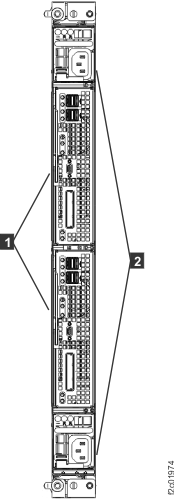

Figure 2. Storage enclosure parts, rear

Table 3. Storage enclosure parts, rear, 30 SSD slots (Models 961, 96E)
Index	Part name	CCIN¹	Part number
1	Storage enclosure RAID controller card	DAWH	00MA013
1	Storage enclosure RAID controller fan assembly	WHFA	41T8234
2	Storage enclosure power supply	BHPS	41T8794
Notes: Important, read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable. When you order a part number (P/N) reported in a serviceable event or call home record, please check if the parts ordering system has a conditional substitute for DS8000 series. CCINs that are in parentheses are reported by earlier levels of the LIC bundle. For flash drives (SSDs) with multiple CCINs for same size, replace with a different CCIN only if that CCIN appears in the column Allowable substitute CCIN(s).

Figure 3. RAID controller card connections

Table 4. Storage enclosure PCIe cabling matrix - standard or business class configuration, Rack-1 and Rack-2 (Models 961, 96E)
From: PCIe storage interface card	DA Pair (link)	To: RAID controller card	CCIN¹	FRU PN (FRU kit includes PCIe storage interface card and storage enclosure PCIe cable)
R1-XI3-P1-C2-T1	10B	R1-B04-P1-C2-T3	HOCA	98Y4437
R1-XI4-P1-C5-T1	10A	R1-B04-P1-C1-T3	HOCA	98Y4437
R1-XI1-P1-C2-T1	8B	R1-B03-P1-C2-T3	HOCA	98Y4437
R1-XI2-P1-C5-T1	8A	R1-B03-P1-C1-T3	HOCA	98Y4437
R1-XI3-P1-C5-T1	11A	R1-B02-P1-C1-T3	HOCA	98Y4437
R1-XI4-P1-C2-T1	11B	R1-B02-P1-C2-T3	HOCA	98Y4437
R1-XI1-P1-C5-T1	9A	R1-B01-P1-C1-T3	HOCA	98Y4437
R1-XI2-P1-C2-T1	9B	R1-B01-P1-C2-T3	HOCA	98Y4437
R2-XI3-P1-C2-T1	14B	R2-B04-P1-C2-T3	HOCA	98Y4437
R2-XI4-P1-C5-T1	14A	R2-B04-P1-C1-T3	HOCA	98Y4437
R2-XI1-P1-C2-T1	12B	R2-B03-P1-C2-T3	HOCA	98Y4437
R2-XI2-P1-C5-T1	12A	R2-B03-P1-C1-T3	HOCA	98Y4437
R2-XI3-P1-C5-T1	15A	R2-B02-P1-C1-T3	HOCA	98Y4437
R2-XI4-P1-C2-T1	15B	R2-B02-P1-C2-T3	HOCA	98Y4437
R2-XI1-P1-C5-T1	13A	R2-B01-P1-C1-T3	HOCA	98Y4437
R2-XI2-P1-C2-T1	13B	R2-B01-P1-C2-T3	HOCA	98Y4437
Notes: Important: read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable. When you order a part number (P/N) reported in a serviceable event or call home record, check if the parts ordering system has a conditional substitute for DS8000 series.

Table 5. Storage enclosure PCIe cabling matrix - DS8870 all-flash, Rack 1 (Model 961)
From: PCIe storage interface card	DA Pair (link)	To: RAID controller card	CCIN¹	FRU PN (FRU kit includes PCIe storage interface card and storage enclosure PCIe cable)
R1-XI3-P1-C2-T1	10B	R1-B04-P1-C2-T3	HOCA	98Y4437
R1-XI4-P1-C5-T1	10A	R1-B04-P1-C1-T3	HOCA	98Y4437
R1-XI1-P1-C2-T1	8B	R1-B03-P1-C2-T3	HOCA	98Y4437
R1-XI2-P1-C5-T1	8A	R1-B03-P1-C1-T3	HOCA	98Y4437
R1-XI3-P1-C5-T1	11A	R1-B02-P1-C1-T3	HOCA	98Y4437
R1-XI4-P1-C2-T1	11B	R1-B02-P1-C2-T3	HOCA	98Y4437
R1-XI1-P1-C5-T1	9A	R1-B01-P1-C1-T3	HOCA	98Y4437
R1-XI2-P1-C2-T1	9B	R1-B01-P1-C2-T3	HOCA	98Y4437
R1-XI7-P1-C2-T1	14B	R1-B14-P1-C2-T3	HOCB	98Y5346
R1-XI8-P1-C5-T1	14A	R1-B14-P1-C1-T3	HOCB	98Y5346
R1-XI5-P1-C2-T1	12B	R1-B13-P1-C2-T3	HOCB	98Y5346
R1-XI6-P1-C5-T1	12A	R1-B13-P1-C1-T3	HOCB	98Y5346
R1-XI7-P1-C5-T1	15A	R1-B12-P1-C1-T3	HOCB	98Y5346
R1-XI8-P1-C2-T1	15B	R1-B12-P1-C2-T3	HOCB	98Y5346
R1-XI5-P1-C5-T1	13A	R1-B11-P1-C1-T3	HOCB	98Y5346
R1-XI6-P1-C2-T1	13B	R1-B11-P1-C2-T3	HOCB	98Y5346
Notes: Important: read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable. When you order a part number (P/N) reported in a serviceable event or call home record, check if the parts ordering system has a conditional substitute for DS8000 series.
