DS8000 Service Documentation Version 7.5

Storage enclosure part numbers, Models 941, 94E

Information about storage enclosure parts is listed below. Use Table 1 as a directory.

Notes:

The following part numbers are the most recent for this version of the Parts Catalog. Your storage facility or serviceable event FRU list might contain an older or newer part number. The parts ordering system should recognize all valid part numbers and will automatically substitute an available part number as needed.
If the parts ordering system does not recognize a part number, determine whether the serviceable event FRU list displays a custom card identification number (CCIN) value for the FRU. If it does, use the CCIN to find and order a valid part number from the table(s) below. If a CCIN does not display, contact your next level of support.

Table 1. Start here, storage enclosure part numbers (Models 941, 94E)
Part name	Figure
Cables, Fibre Channel (FC-AL), at front or rear of rack	Figure 2
Disk drive dummy module	Figure 1
Disk drive module (DDM)	Figure 1
Fibre channel interface card (FCIC)	Figure 1
Storage enclosure backplane	Figure 1
All other parts	(Find the appropriate figure below)

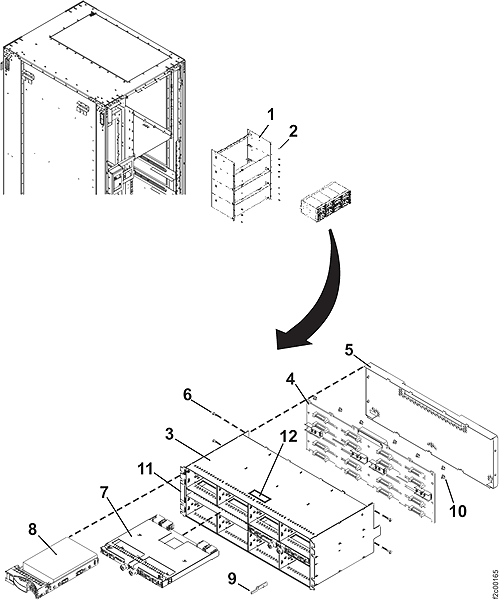

Figure 1. Storage enclosure parts

Table 2. Storage enclosure parts (Models 941, 94E)
Index	Part name	CCIN¹	Part number	Allowable substitute CCIN(s) (note 3)
1	Storage enclosure wrapper		45W1225	N/A
2	Screw (M3x6 Pan head)		05J7942	N/A
3	Chassis²		22R4844	N/A
4	Storage enclosure backplane	SEBP	95P1961	none
5	Cover		22R5194	N/A
6	Screw (M3x6 flat head)		05J7943	N/A
7	Fibre channel interface card (FCIC)	FCIC	17P8893	none
8	Disk drive dummy module (slot baffle)	SBFL	22R2805	none
8	Disk drive module (DDM), 72 GB 15K RPM for the People's Republic of China (PRC), India, and Pakistan	D07C	45W3357	none
8	Disk drive module (DDM), 73 GB 15K RPM	D07C	23R0828	none
8	Solid State Disk (SSD), 73 GB	S071	45W1758	none
8	Disk drive module (DDM), 146 GB 10K RPM	D14B	23R0829	none
8	Disk drive module (DDM), 146 GB 10K RPM for PRC, India, and Pakistan	D14B	45W3358	none
8	Disk drive module (DDM), 146 GB 15K RPM	D14C	23R0830	none
8	Disk drive module (DDM), 146 GB 15K RPM for PRC, India and Pakistan	D14C	45W3359	none
8	Disk drive module (DDM), 146 GB 15K RPM, self encrypting	E14C	17P9909	none
8	Solid State Disk (SSD), 146 GB	S141	45W1759	none
8	Disk drive module (DDM), 300 GB 10K RPM, standard version	D30B	23R0831	none
8	Disk drive module (DDM), 300 GB 10K RPM, RPQ version	D30B	23R0831	none
8	Disk drive module (DDM), 300 GB 10K RPM for PRC, India, and Pakistan	D30B	45W3360	none
8	Disk drive module (DDM), 300 GB 15K RPM	D30C	17P8581	none
8	Disk drive module (DDM), 300 GB 15K RPM for PRC, India, and Pakistan	D30C	45W3361	none
8	Disk drive module (DDM), 300 GB 15K RPM, self-encrypting	E30C	17P9908	none
8	Solid state disk (SSD), 300 GB	S301	45W1760	none
8	Disk drive module (DDM), 450 GB 15K RPM	D45C	17P9905	none
8	Disk drive module (DDM), 450 GB 15K RPM,self-encrypting	E45C	17P9907	none
8	Disk drive module (DDM), 500 GB 7.2K RPM	N50A	22R6341	none
8	Disk drive module (DDM), 600 GB 15K RPM	D60C	45W2327	none
8	Disk drive module (DDM), 600 GB 15K RPM, self-encrypting	E60C	45W2354	none
8	Solid State Disk (SSD), 600 GB	S601 or S602	45W8708	S602 or S601
8	Disk drive module (DDM), 1 TB SATA, 7.2 RPM	T1AA	21R9819	none
8	Disk drive module (DDM), 2 TB SATA, 7.2 RPM	T1IA	45W5204	T1IE
8	Disk drive module (DDM), 2 TB SATA, 7.2 RPM, category 2 (note 3)	T1IE	98Y4241	none
9	Key, Fibre Channel		22R2678	N/A
10	Screw		05J7942	N/A
11	Label, serial number		44F0924	N/A
12	Label, safety > 35 lbs		5423461	N/A
Notes: Important, read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable. When you order a part number (P/N) reported in a serviceable event or call home record, please check if the parts ordering system has a conditional substitute for DS8000® series. If a part number from a serviceable event does not appear in this table, a part number with the same CCIN can be substituted. CCINs that are in parentheses are reported by earlier levels of the LIC bundle. The enclosure chassis is a special order item. The chassis to be replaced has bar code labels with the specific MTMS (machine type model serial number) information. Contact next level of support to determine if the label can be moved to the new chassis. The MTMS should stay the same as there is not an HMC menu option to change it. The MTMS on the bar code label must match the MTMS in the code, as the enclosure serial number is used in serviceable event FRU list and exchange part lists. For DDMs and SSDs with multiple CCINs for same size and speed, replace with a different CCIN only if that CCIN appears in the column "Allowable substitute CCIN(s)".

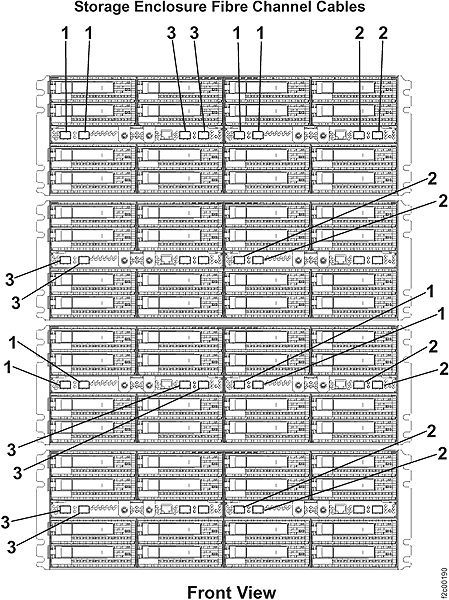

Figure 2. Storage enclosure Fibre Channel (FC-AL) cables (front or rear of rack)

Figure 3. The format of information on a cable bundle label

CAUTION:

Cables must only be replaced one at a time using the appropriate guided maintenance procedure.

Table 3. Fibre channel cables, copper (Models 941, 94E)
Index	Part name	CCIN¹	Part number
1	Cable, Fibre Channel, 0.6 m (2 ft.)³	FCBL²	22R5251
	Cable, Fibre Channel, 2.5 m (8 ft. 2 in.)³	FCBL²	22R5252
	Cable, Fibre Channel, 5.5 m (18 ft.)³	FCBL²	22R5253
	Cable, Fibre Channel, 9.0 m (29 ft. 6 in.)³	FCBL²	22R5254
2	Cable, Fibre Channel	FCBL²	17P8085
3	Cable, Fibre Channel	FCBL²	17P8084
Notes: Important, read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable. When you order a part number (P/N) reported in a serviceable event or call home record, check if the parts ordering system has a conditional substitute for DS8000 series. Later levels of the LIC bundle report this CCIN. Earlier levels do not report a CCIN. Fibre channel cables are bundled in groups of eight from the factory. There are many cable bundles, each with custom-length cables that are individually labeled for specific racks, enclosures, and connectors. It is not possible to order individual cables bundles. There are four cables the field can order, each is a different length and without any labeling. You need to find the part number on the cable bundle that contains the cable that needs replaced. The parts ordering system will take the cable bundle part number and convert it to a single cable part number that is longer than the longest cable in the cable bundle.
