DS8000 Service Documentation Version 7.5

Rack power and cooling part numbers, Models 941, 94E

This topic presents information on rack power and cooling part numbers for Models 941, 94E.

Use Table 1 as a directory for rack power and cooling part numbers for Models 941, 94E.

Note: The following part numbers are the most recent for this version of the Parts Catalog. Your storage facility or serviceable event FRU list might contain an older or newer part number. The parts ordering system recognizes all valid part numbers and will automatically substitute an available part number as needed.
Table 1. Start here, rack power and cooling (Models 941, 94E)
Part name Figure
5/12V DDM power module Figure 2
Battery module set (a set is three battery modules) Figure 1
Battery module enclosure Figure 1
Battery module enclosure fan Figure 1
Battery module filler Figure 1
Booster power module Figure 2
Bus bar A1, 208VDC, primary Figure 9
Bus bar B1, 208VDC, primary Figure 9
Bus bar A2 and B2, 208VDC, secondary Figure 10
Bus bar A and B, 5/12V, primary Figure 7
Bus bar A and B, 5/12V, secondary Figure 7
Bus bar A, 5/12V, primary to 5/12V secondary Figure 8
Bus bar B, 5/12V, primary to 5/12V secondary Figure 8
Cables, battery module set Figure 14
Cables, bus bar, A1, 208VDC, primary Figure 12
Cables, bus bar, B1, 208VDC, primary Figure 12
Cables, bus bar, A2, 208VDC, secondary Figure 12
Cables, bus bar, B2, 208VDC, secondary Figure 12
Cables, fan sense card Figure 15
Cables, primary power supply (PPS) Figure 11
Cables, rack identity card Figure 17
Cables, rack operator panel UEPO switch assembly Figure 18
Cables, RPC card Figure 19
DASD fan tray assembly Figure 4
Fan sense card Figure 3
Mainline power cable Table 11, Index 1
Local remote switch card Figure 4
Primary power supply Figure 2
Primary power supply fan Figure 2
Rack identity card Figure 4
Rack operator panel UEPO switch assembly Figure 5
RPC card Figure 3
Sequencer module Figure 2
zSeries local remote switch card Figure 4
All other parts (Find the appropriate figure below)
Figure 1. Battery module parts
Battery module parts
Table 2. Battery module parts (Models 941, 94E)
Index Part name Part number
1 Battery module enclosure 22R4417
2 Screw 54G2882
3 Battery module filler 23R0207
3 Battery module set (three modules) 45W6796 2 Screws
3 Battery module set FRU shipping materials (box, pads, pallet, and field strapping kit). Only to be ordered if the shipping materials for the new FRU have been lost or damaged. 45W9747
3 Field strapping kit, see FRU shipping materials above. 92X9720
4 Battery module frame (not a FRU) 1
5 Battery module enclosure fan 22R4419
6 Fan guard, battery module enclosure 93H6016
7 Screw 1621200
Notes:
  1. Call your next level of support.
  2. Old-level battery modules have captive screws to fasten the module into the battery module enclosure. New-level battery modules do not use captive screws and instead use a loose screw FRU P/N 00G1268. The FRU kit for the new-level modules includes the screws. The screws can be ordered separately if needed.

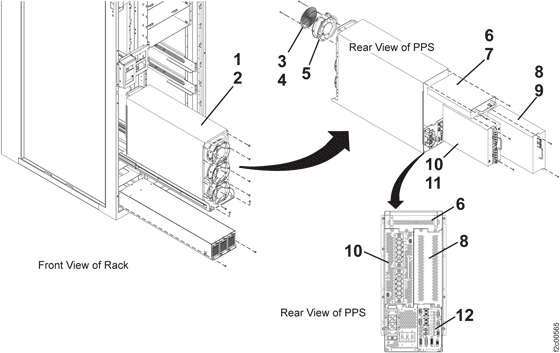

Figure 2. PPS parts
PPS parts
Table 3. PPS parts (Models 941, 94E)
Index Part name Part number
1 Primary power supply (PPS)

A base PPS contains the following parts:

  • 208VDC base module
  • 5/12V DDM power module
  • AC input power module
  • PFC module
  • Sequencer module
 22R4215
2 Screw 54G2882
3 Fan guard 22R5052
4 Screw, fan guard 22R6069
5 PPS Fan 22R4210
6 Booster power module (optional) 23R0493
7 Screw 54G2882
8 5/12V DDM power module1 (optional) 22R4207
8 Cover2 22R4212
9 Screw 3
10 5/12V DDM power module 22R4207
11 Screw 3
12 Sequencer module 23R0639
Notes:
  1. Required if more than 8 storage enclosures with DDMs present are installed.
  2. Dummy module cover present if optional Booster power module  6  is not present.
  3. Call your next level of support.

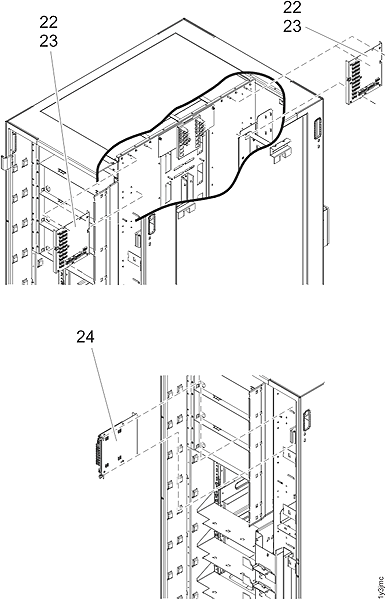

Figure 3. Rack power and cooling parts (continued)
Rack and Power Assembly 4 Page 3
Table 4. Rack power and cooling parts (1 of 3) (Models 941, 94E)
Index Part name Part number
22 Fan sense card 22R4917
23 Screw 1621842
24 RPC card 95P1959

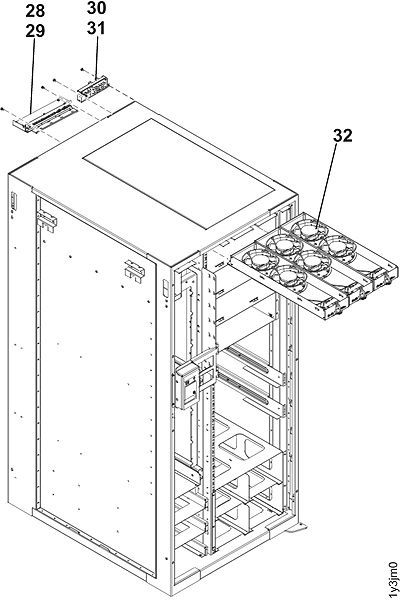

Figure 4. Rack power and cooling parts (continued)
Storage Enclosure Assembly 1 Page 1
Table 5. Rack power and cooling parts (2 of 3) (Models 941, 94E)
Index Part name Part number
28 Rack identity card 22R5740
29 Screw 54G2882
30 Card, local remote switch 95P1963
30 Card, zSeries local remote switch 95P1962
31 Screw 54G2882
32 DASD fan tray assembly 22R5051
Figure 5. Rack power and cooling parts (continued)
UEPO switch
Table 6. Rack power and cooling parts (3 of 3) (Models 941, 94E)
Index Part name Part number
40 Rack operator panel UEPO switch assembly 22R5741
41 Cover gasket 22R1453
42 Label, agency 22R1790
43 Label, country of origin, Hungary 53P5888
43 Label, country of origin, US 44P3946
44 Label, IBM logo 97P2549
45 Label, manufacturing site, Hungary 22R1805
45 Label, manufacturing site, San Jose, CA 22R1804
46 Label, Nordic 97P5092

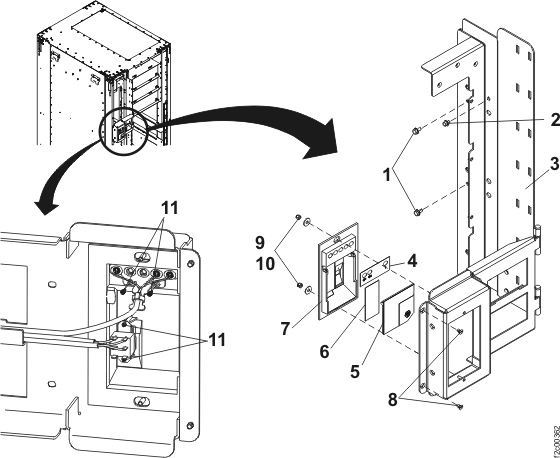

Figure 6. Rack operator panel UEPO switch assembly parts
Rack operator panel UEPO switch assembly parts
Table 7. Parts of the rack operator panel UEPO switch assembly (Models 941, 94E)
Index Part name Part number
1 Screw, operator panel gate 54G2882
2 Screw, operator panel gate 1624775
3 Operator panel gate 22R4905
4 Label, operator panel 22R5887
5 Door, operator panel, early version1 N/A
Door, operator panel, later version1 22R3997
6 Label, emergency switch 22R1047
7 Housing, operator panel, early version1 N/A
Housing, operator panel, later version1 22R3996
8 Screw, operator panel gate2 1621319
9 Lock nut, housing mounting 1622417
10 Washer, housing mounting 1622276
11 Screw, connector-to-housing 1622660
Notes:
  1. On the early version, nipples on the door pivot on holes in the housing. On the later version, holes in the door pivot on nipples on the housing. An early version door does not work with a later version housing and vice versa.
  2. Keeps the gate closed.

Parts of the rack power and cooling bus bars

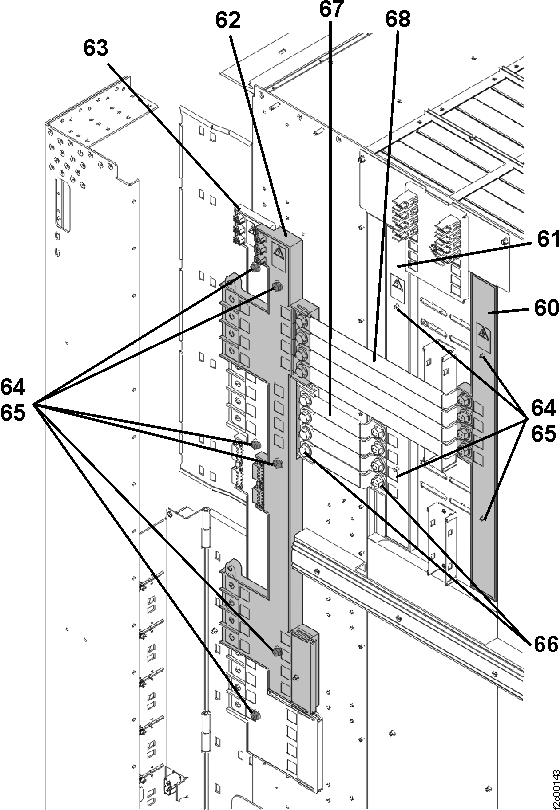

Figure 7. Rack power and cooling parts (continued)
Bus bar, 5 1/2V, pri, A and B
Table 8. Parts of the rack power and cooling bus bars (1 of 3) (Models 941, 94E)
Index Part name Part number
60 Bus bar A, 5/12V, primary 22R6100
61 Bus bar B, 5/12V, primary 22R6101
62 Bus bar A, 5/12V, secondary 22R6102
63 Bus bar B, 5/12V, secondary 22R6103
64 Washer 1622276
65 Lock nut 1622418
66 Bolt 22R0321
67 Cable, bus bar -to- bus bar 22R6105
68 Cable, bus bar -to- bus bar 22R6104

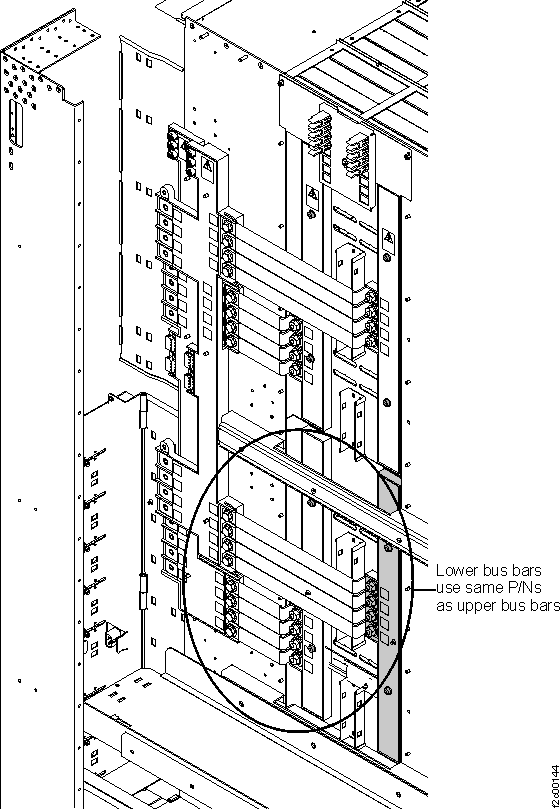

Figure 8. Rack power and cooling parts (continued)
Bus bar, 5 1/2V pri to 5 1/2V sec, A and B

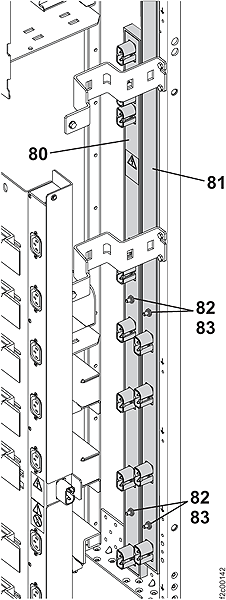

Figure 9. Rack power and cooling parts (continued)
Bus bar, 208VDC, primary, A1
Table 9. Parts of the rack power and cooling bus bars (2 of 3) (Models 941, 94E)
Index Part name Part number
80 Bus bar B1, 208VDC, primary 22R6125
81 Bus bar A1, 208VDC, primary 22R6124
82 Washer 1622276
83 Lock nut 1622418

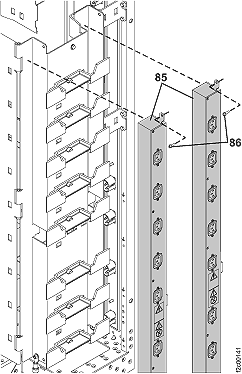

Figure 10. Rack power and cooling parts (continued)
Bus bar, 208VDC, secondary
Table 10. Parts of the rack power and cooling bus bars (3 of 3) (Models 941, 94E)
Index Part name Part number
85 Bus bar A2 and B2, 208 VDC, secondary 22R6126
86 Screw 54G2882

Cables for rack power and cooling parts

Figure 11. Rack power and cooling cables
Rack power and cooling cables
Table 11. Cables for rack power and cooling parts (Models 941, 94E)
Index Part name Part number
1 Cable, power (3-phase), short (PPS-2), 60A Chicago (7.7 feet) 22R1188
Cable, power (3-phase), long (PPS-1), 60A Chicago (9.5 feet) 22R1189
Cable, power (1-phase), short (PPS-2), Chicago (7.7 feet) 17P9590
Cable, power (1-phase), long (PPS-1), Chicago (9.5 feet) 17P9591

Cable, power (3-phase), long (PPS-1), 60A Japan (17.5 feet) 22R2224
Cable, power (3-phase), short (PPS-2), 60A Japan (15.8 feet) 22R1191

Cable, power (3-phase), long (PPS-1), EMEA (17.5 feet) 22R3795
Cable, power (3-phase), short (PPS-2), EMEA (15.8 feet) 22R3794
Cable, power (1-phase), long (PPS-1), EMEA (17.5 feet) 17P9596
Cable, power (1-phase), short (PPS-2), EMEA (15.8 feet) 17P9595

Cable, power (3-phase), long (PPS-1), non-EMEA (17.5 feet) 22R2222
Cable, power (3-phase), short (PPS-2), non-EMEA (15.8 feet) 22R1190
Cable, power (1-phase), long (PPS-1), non-EMEA (17.5 feet) 17P9593
Cable, power (1-phase), long (PPS-1), non-EMEA (17.5 feet) 17P9592
2 Cable, PPS-1 -to- 5/12V bus bar 17P8592
Cable, PPS-2 -to- 5/12V bus bar 17P8593
3 Cable, PPS -to- 5/12V bus bar
Base rack only		 17P8587
Cable, PPS -to- 5/12V bus bar
Expansion rack only		 17P8589
4 Cable, PPS -to- 5/12V bus bar
Base rack only		 17P8587
Cable, PPS -to- 5/12V bus bar x
Expansion rack only		 17P8588
5 Cable, PPS-1 -to- 5/12V bus bar 17P8590
Cable, PPS-2 -to- 5/12V bus bar 17P8591
6 Cable, PPS -to- RPC card (except Rack-1) 22R6139
Cable, PPS -to- RPC card (Rack 1) 22R6147
7 Cable, PPS -to- RPC card (except Rack-1) 22R6140
Cable, PPS -to- RPC card (Rack 1) 22R6148
8 Cable, PPS-1 -to- rack identity card 22R5756
Cable, PPS-2 -to- rack identity card 22R5757
9 Cable, PPS -to- PPS 22R5754
10 Cable, PPS-1 -to- fan sense card 22R1772
Cable, PPS-2 -to- fan sense card 22R5744
11 Cable, PPS-1 -to- fan sense card 22R5746
Cable, PPS-2-to- fan sense card 22R5747
12 Cable, PPS-1 -to- battery module 22R5752
Cable, PPS-2 -to- battery module 22R5753
13 Cable (multi-connector power cord)1 22R5759
14 Cable (multi-connector power cord)1 22R5759
15 Cable, PPS-1-to- battery module 22R5749
Cable, PPS-2 -to- battery module 22R5750
16 Cable, PPS -to- rack operator panel UEPO switch 21R9592
17 Cable, PPS -to- 208V bus bar 22R6127
18 Cable, PPS -to- 208V bus bar2 22R6127
19 Cable, PPS -to- 208V bus bar 22R6127
20 Cable, PPS -to- 5/12V bus bar x
Expansion rack only		 17P8588
21 Cable, PPS -to- 5/12V bus bar
Expansion rack only		 17P8589
22 Screw, 5/12V cable retention 22R0123
Notes:
  1. This cable is hard wired to a junction connector that provides power to the Ethernet switches, the display/ keyboard tray, and the management console. The junction box also receives power from the other PPS via this cord.
  2. The PPS sequencer module connector and cable have been eliminated on later levels of hardware. The parts exchange procedure explains this in greater detail.

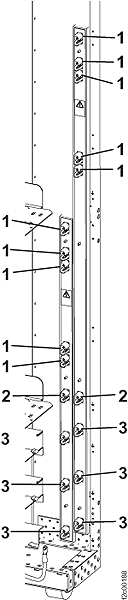

Figure 12. Cables for 208VDC primary bus bars A1 (right) and B1 (left)
Cables for 208VDC primary bus bars A1 (right) and B1 (left)
Table 12. Cables for 208V bus bars A1 and B1 (Models 941, 94E)
Index Part name Part number
1 Cable, 208V bus bar -to- PPS 22R6127
2 Cable, 208V bus bar A1 -to- 208V bus bar A2 22R6129
Cable, 208V bus bar B1 -to- 208V bus bar B2 22R6130
3 Cable, 208V bus bar -to- battery module 22R6128
Figure 13. Rack power and cooling 208VDC bus bars A2 (right) and B2 (left)
Rack power and cooling 208VDC bus bars A2 (right) and B2 (left)
Table 13. Cables for 208V bus bars A2 and B2 (Models 941, 94E)
Index Part name Part number
1 Cable, 208V bus bar B2 -to- CEC enclosure power supply XC1-E1, XC2-E1 22R5828
2 Cable, 208V bus bar A2 -to- CEC enclosure power supply XC1-E2, XC2-E2 22R5829
3 Cable, 208V bus bar B2 -to- I/O enclosure power supply XI2-E2, XI4-E2 45W1170
4 Cable, 208V bus bar B2 -to- I/O enclosure power supply XI1-E2, XI3-E2 45W1172
5 Cable, 208V bus bar A2 -to- I/O enclosure power supply XI2-E1, XI4-E1 45W1169
6 Cable, 208V bus bar A2 -to- I/O enclosure power supply XI1-E1, XI3-E1 45W1171
Figure 14. Cables for battery module enclosure
Cables for battery module enclosure
Table 14. Cables for a battery module set (Models 941, 94E)
Index Part name Part number
1-2 Cable, battery module -to- PPS-1 22R5752
Cable, battery module -to- PPS-2 22R5753
3-4 Cable, battery module -to- 208V bus bar 22R6128
5 Cable, battery module -to- PPS-1 22R5749
6 Cable, battery module -to- PPS-2 22R5750

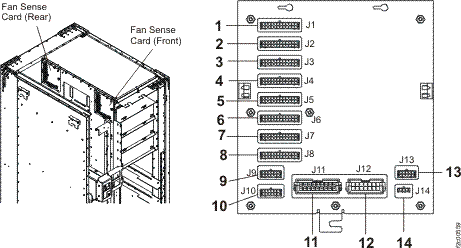

Figure 15. Cables on the fan sense cards
Cables on the fan sense cards
Table 15. Cables for the fan sense card (front card) (Models 941, 94E)
Index Part name Part number
1-4 Cable, fan sense card (front)-to-center wall bulkhead1 (cable bundle)
(Connector J1 cable goes to storage enclosure XS11, J2 to XS12, J3 to XS13, J4 to XS14)
Note: Order both cables: fan sense card to bulkhead and bulkhead to storage enclosure.
 22R6110 (new); 22R1150 (old)
Cable, center wall bulkhead-to-storage enclosure1 (individual cable)
Note: Order both cables: fan sense card to bulkhead and bulkhead to storage enclosure.
 22R6431 (new); 22R6109 (old)
5-8 Cable, fan sense card (front)-to-center wall bulkhead1, 2 (cable bundle)
(Connector J5 cable goes to storage enclosure XS15, J6 to XS16, J7 to XS17, J8 to XS18)
Note: Order both cables: fan sense card to bulkhead and bulkhead to storage enclosure.
 22R6112 (new); 22R1152 (old)
Cable, center wall bulkhead-to-storage enclosure (individual cable)1, 2
Note: Order both cables: fan sense card to bulkhead and bulkhead to storage enclosure.
 22R6431 (new); 22R6109 (old)
9-10 Cable, fan sense card (front) -to- DASD fan trays 1 and 2 22R5474
11 Cable, fan sense card (front) -to- PPS-1 (upper) 22R5743
12 Cable, fan sense card (front) -to- PPS-2 (lower) 22R5746
13 Cable, fan sense card (front) -to- rack identity card 22R5916
14 Cable, fan sense card -to- fan sense card 22R5476
Notes:
  1. The cable interface between the fan sense card and the rear of the storage enclosure consists of three segments:
    1. The cable from the fan sense card to the rack center wall bulkhead. This FRU is a four-cable harness.
      Individual cables cannot be replaced.
    2. The rack center wall bulkhead which is between the PPS power supplies and the storage enclosure vertical air plenum.
      This FRU should never fail, and requires the rack to be powered off to replace it.
    3. The cable from the rack center wall bulkhead to the rear of the storage enclosure. This FRU is a Y-cable.
      One leg of the Y carries fan sense card signals from the rack center wall bulkhead to the storage enclosure.
      The other leg of the Y carries 5/12v power from the center wall bulkhead to the storage enclosure.
  2. Expansion rack only.
Table 16. Cables for the fan sense card (rear card) (Models 941, 94E)
Index Part name Part number
1-4 Cable, fan sense card (rear)-to-center wall bulkhead1 (cable bundle)
(Connector J1 cable goes to storage enclosure XS21, J2 to XS22, J3 to XS23, J4 to XS24).
Note: Order both cables: fan sense card to bulkhead and bulkhead to storage enclosure.
 22R6111 (new); 22R1151 (old)
Cable, center wall bulkhead-to-storage enclosure1 (individual cable)
Note: Order both cables: fan sense card to bulkhead and bulkhead to storage enclosure.
 22R6431 (new); 22R6109 (old)
5-8 Cable, fan sense card (rear)-to-center wall bulkhead1, 2 (cable bundle)
(Connector J5 cable goes to storage enclosure XS25, J6 to XS26, J7 to XS27, J8 to XS28)
Note: Order both cables: fan sense card to bulkhead and bulkhead to storage enclosure.
 22R6113 (new); 22R1153 (old)
Cable, center wall bulkhead-to-storage enclosure (individual cable)1, 2
Note: Order both cables: fan sense card to bulkhead and bulkhead to storage enclosure.
 22R6431 (new); 22R6109 (old)
9-10 Cable, fan sense card (rear) -to- DASD fan tray 3 22R5475
11 Cable, fan sense card (rear) -to- PPS-2 (lower) 22R5744
12 Cable, fan sense card (rear) -to- PPS-1 (upper) 22R5747
13 Cable, fan sense card (rear) -to- rack identity card 22R5917
14 Cable, fan sense card -to- fan sense card 22R5476
Notes:
  1. The cable interface between the fan sense card and the rear of the storage enclosure consists of three segments:
    • The cable from the fan sense card to the rack center wall bulkhead. This FRU is a four-cable harness.
      Individual cables cannot be replaced.
    • The rack center wall bulkhead which is between the PPS power supplies and the storage enclosure vertical air plenum.
      This FRU should never fail, and requires the rack to be powered off to replace it.
    • The cable from the rack center wall bulkhead to the rear of the storage enclosure. This FRU is a Y-cable.
      One leg of the Y carries fan sense card signals from the rack center wall bulkhead to the storage enclosure.
      The other leg of the Y carries 5/12v power from the center wall bulkhead to the storage enclosure.
  2. Expansion rack only.
Figure 16. Rack power and cooling fan tray cables
Fan tray cables
Table 17. Cables for the DASD fan trays (Models 941, 94E)
Index Part name Part number
1 Cable, DASD fan tray -to- 5/12V secondary bus bar 22R5473
2 Cable, DASD fan tray -to- 5/12V secondary bus bar 22R5472
3 Cable, DASD fan tray -to- fan sense card (front) 22R5474
4 Cable, DASD fan tray -to- fan sense card (rear) 22R5475

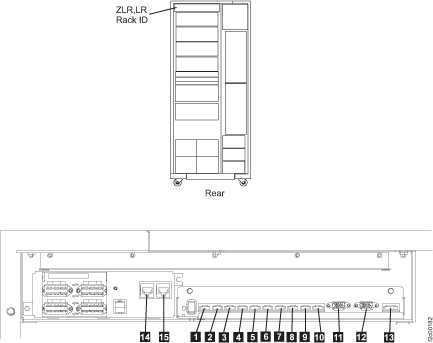

Figure 17. Rack power and cooling local remote and rack identity card cables
Local remote and rack identity card cables
Table 18. Cables for the rack identity card and the local remote switch card (Models 941, 94E)
Index Part name Part number
1 Cable, rack identity card -to- fan sense card (front) 22R5916
2 Cable, rack identity card -to- fan sense card (rear) 22R5917
3-4 Cable, rack identity card -to- CEC enclosure 1 22R5919
Cable, rack identity card -to- CEC enclosure 2 22R5920
Cable, rack identity card -to- CEC enclosure 3 22R5921
5 Cable, rack identity card -to- I/O enclosure 22R5922
6 Cable, rack identity card -to- I/O enclosure 22R5923
7 Cable, rack identity card -to- I/O enclosure 22R5924
8 Cable, rack identity card -to- I/O enclosure 22R5925
9 Cable, rack identity card -to- PPS 22R5756
10 Cable, rack identity card -to- PPS 22R5757
11 Cable, rack identity card -to- RPC card 22R6145
12 Cable, rack identity card -to- RPC card 22R6146
13 Cable, rack identity card -to- rack operator panel LED assembly 22R5758
14 Cable, local remote switch card -to- RPC card 22R6141
15 Cable, local remote switch card -to- RPC card 22R6142
Figure 18. Rack operator panel UEPO switch cables
Operator panel (UEPO) cables
Table 19. Cables for the rack operator panel UEPO switch (Models 941, 94E)
Index Part name Part number
1 Cable, rack operator panel LED assembly 22R5758
2 Cable, rack operator panel UEPO switch 22R5741
3 Screw, connector-to-housing 1622660

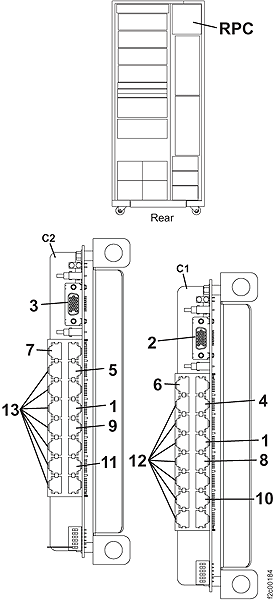

Figure 19. Cables for RPC cards
Cables for RPC cards
Table 20. Cables for the RPC card (Models 941, 94E)
Index Part name Part number
1 Cable, RPC card -to- RPC card 22R6138
2 Cable, RPC card -to- rack identity card 22R6145
3 Cable, RPC card -to- rack identity card 22R6146
4 Cable, RPC card -to- local remote switch card 22R6141
5 Cable, RPC card -to- local remote switch card 22R6142
6 Cable, RPC card -to- PPS (rack 1) 22R6147
7 Cable, RPC card -to- PPS (rack 1) 22R6148
8-9 Cable, RPC card -to- CEC enclosure 1 22R6143
10-11 Cable, RPC card -to- CEC enclosure 2 22R6144
12 Cable, RPC card -to- PPS (expansion rack) 22R6139
13 Cable, RPC card -to- PPS (expansion rack) 22R6140
