MAP7050 16-port Ethernet switch port connections for withdrawn SF#3 and SF#4 RPQs

This MAP is for archival purposes only.

Before you begin

All RPQ support for the third or fourth storage facility in a storage complex was withdrawn when the 16-port Ethernet switches were replaced with 8-port Ethernet switches. For archival purposes, this MAP includes the original graphics for the port connectivity.

MAP7050 Section-1

Procedure

The SF#1 Rack-1 16-port Ethernet switch port assignments for connecting a third or fourth storage facility are shown in the following figure.

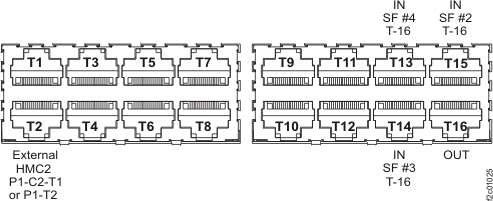

Figure 1. 16-port Ethernet switch port for SF#3 and SF#4
