MAP4050 Switching off the CEC enclosure system attention indicator
(lit solid)
If the system attention indicator (LED) that is on the
CEC enclosure is lit solid, use this procedure to switch it off.
MAP4050 Section-1
Procedure
- Observe the system
attention indicator (LED) on the front
of the CEC enclosure. See 7
Figure 1 and D
Figure 2 (Model 961), or 1
Figure 3 (Models 941,
951). Find
the condition that applies:
- The LED is lit solid (attention). One or more serviceable events
needing repair exist. Go to the next step.
- Off, the condition does not exist at this time. Return to the procedure that sent you
here.

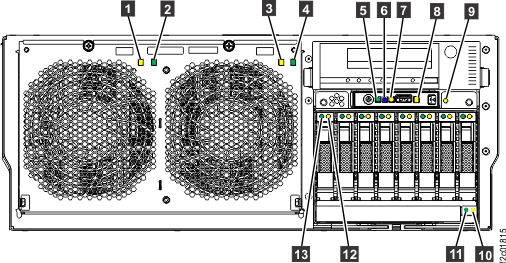

Figure 1. CEC enclosure front LED indicators (Model 961)
Figure 2. CEC enclosure control panel assembly (Model 961)
Figure 3. CEC enclosure system attention LED indicator (Models 941,
951)
- If there are open serviceable
events, the LED will remain on (lit solid) until the serviceable events
are closed. Exit this procedure and repair any open serviceable events.
If there are no open serviceable events, go to the next step.
- Turn off all of the attention LEDs (which will turn off
the CEC enclosure system attention LED).
- From the navigation area, click .
- From the bottom Task area, click . The Attention LEDs Status window
opens. See Figure 4. Notice
that the status for both of the managed systems (CEC enclosures) is
displayed.
- Click Turn Off All Attention LEDs.

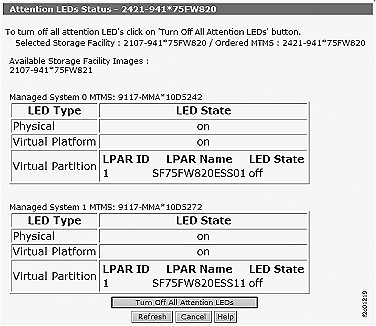

Figure 4. Window: Attention LEDs Status
(applies to all models)
Figure 2. CEC enclosure control panel assembly (Model 961)
Figure 3. CEC enclosure system attention LED indicator (Models 941, 951)
