DS8000 Service Documentation Version 7.5

MAP32C0 Storage enclosure not discovered during installation

The installation process for the storage enclosures failed because at least one target storage enclosure was not discovered.

MAP32C0 Section-1

Review the serviceable event that sent you to this MAP, and note the location code of the undiscovered storage enclosure.
Verify that the undiscovered storage enclosure is physically installed. Refer to your installation instructions or to MES and installation instructions location codes for your model.
If the storage enclosure is physically installed, verify that the cables are properly connected and fully seated. See Figure 1, Figure 2, and Figure 3.
Is the undiscovered storage enclosure physically installed and properly cabled?
- Yes: The storage enclosure is both physically installed and properly cabled. Contact your next level of support.
- No: The storage enclosure is not physically installed, or is not properly cabled. Correct the problem, close the serviceable event, and retry the installation.
Figure 1. Storage enclosure locations (Models 941, 94E)

Figure 2. Storage enclosure locations rear (Models 951, 95E, 961, 96E)

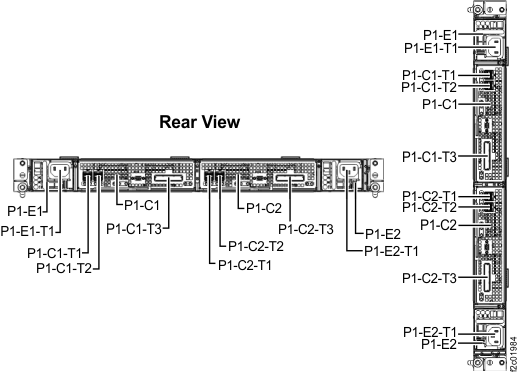

Figure 3. Storage enclosure, 30 SSD slots 1.8 inches (rear view) (Model 961)
