MAP3270 Section-1
About this task
The FRU replacement of the FCIC card requires that the
firmware level be checked using the SES communication of one of two
specific DDMs in the same storage enclosure. See Figure 1.
- The P1-C1 (left) FCIC card uses either the P1-D1 or P1-D2 DDM
- The P1-C2 (right) FCIC card uses either the P1-D3 or P1-D4 DDM

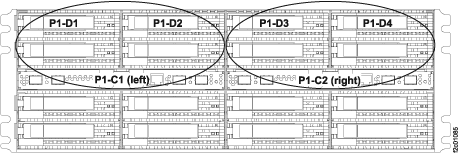

Figure 1. FCIC card and DDMs needed for
SES communication
If neither DDM is available, the following
occurs during the FCIC card repair FRU verification:
- A serviceable event with SRC BE3400B2 and the FRU list containing MAP3270 and the FCIC card is created.
- A serviceable event with SRC BE3400B2 for the FRU list containing MAP3270 and both DDMs is created.
Note: Before you attempt to repair the FCIC card, one or both
failing DDMs might already have open serviceable events with
SRCs other than BE3400B2.
If the repair of the P1-C1(left)
FCIC card fails:
- Use the BE3400B2 serviceable event with the FRU list that contains both DDMs (P1-D1 and P1-D2) to repair at least one of the two DDMs.
- Retry the repair of the FCIC card. If it still fails, ensure that you have repaired both DDMs and retry it one more time.
- After the FCIC card repair is successful, ensure that both DDMs have been repaired and all related open serviceable events are closed.
If the repair of the P1-C2 (right) FCIC card fails:
- Use the BE3400B2 serviceable event with the FRU list that contains both DDMs (P1-D3 and P1-D4) to repair at least one of the two DDMs.
- Retry the repair of the FCIC card. If it still fails, ensure that you have repaired both DDMs and retry it one more time.
- After the FCIC card repair is successful, ensure that both DDMs have been repaired and all related open serviceable events are closed.
