DS8000 Service Documentation Version 7.5

MAP3080 Invalid loop configuration detected by Fibre Channel device adapter

The Fibre Channel device adapter has detected an invalid loop configuration.

Related tasks:
How to start the service information center

MAP3080 Section-1 Start of changeFCIC isolation procedureEnd of change

Procedure

  1. Display and repair any serviceable events related to loop failures. Verify that the FCIC loop cables are plugged correctly. See Figure 1 and Figure 2.

    If no problems are found, return to the repair Start of change or storage enclosure installationEnd of changeaction that sent you here and replace the Fibre Channel device adapter card.

    Figure 1. Model 941/94E storage enclosure locations
    Storage enclosure 1
    Figure 2. Model 951/95E, 961/96E storage enclosure locations
    Storage enclosure locations rear
  2. If the problem still occurs, contact your next level of support. If there are no related serviceable events, contact your next level of support.
Start of change

MAP3080 Section-2 Device adapter isolation procedure

Procedure

  1. Two or more FC-AL cables are reported as cross-connected at the device adapter card listed in the FRU list. At the device adapter card listed in the FRU list, observe the FC-AL cable labels. See Figure 3 or Figure 4.
    Note: If the FRU list contains FC-AL cables, they are listed for informational purposes only. Any cables listed should be in pairs. If an odd number of cables is listed, look for an FC-AL cable that is not connected to the DA card and is hanging free. In all cases, continue with this procedure as if the cables were not listed.

    Are the cables cross-connected?

    • Yes, go to step 2 for device adapter repair.
    • Yes, go to step 3 for storage enclosure installation.
    • No, stop and contact your next level of support. This might be a false error.

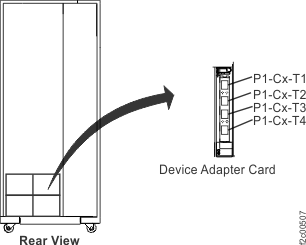

    Figure 3. Model 941/94E, location codes for the device adapter card
    Location codes on the device adapter card

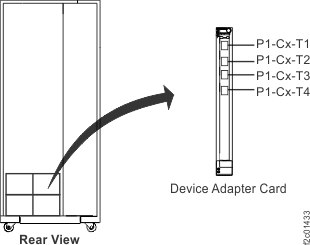

    Figure 4. Model 951/95E, 961/96E location codes for the device adapter card
    Model 951 Location codes for the device adapter card
  2. Use the normal FRU exchange process to do a pseudo repair of the I/O enclosure device adapter card in the FRU list. Do not replace the I/O enclosure device adapter card when instructed by the repair process. Instead, correct the cable or cables that are not connected correctly and then continue with normal repair process.
    1. Read the following substeps before going to substep 2.b, which closes this service information center window. To view this MAP in a separate information center window, click Help in the upper right corner of the main HMC GUI screen and go to the MAP.
    2. Click Close in the current service information center window.
    3. One or more HMC repair screens might prompt you for the result of using the service procedure in the MAP. Select Problem not fixed.
    4. Select No when prompted for whether you exchanged any parts.
    5. Select Yes when prompted for whether you isolated the problem.
    6. Select the I/O Enclosure Device Adapter Card from the FRU list. The HMC begins the FRU exchange process for the selected FRU.
  3. Retry storage enclosure installation.
  4. If the pseudo repair does not fix the problem, contact your next level of support.
End of change
