This section contains information about LEDs that are on the X336 management console server. Although the condition of LEDs might indicate a failure, the LEDs should not be used as a starting point for a repair.
LEDs on the front of the X336 server

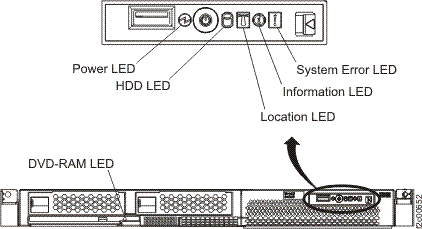

Figure 1. LEDs on the
front of the X336 management console server
- DVD-RAM LED: On = The DVD-RAM drive is in use.
- Information LED: On = A non-critical event has occurred and is identified in the error log.
- Location LED: Use this blue LED to visually locate the server if it is in a location with numerous other servers. You can use IBM Director to light this LED remotely.
- Power LED: On = Input power (ac) and output power (dc)
are present in the server. Flashing = The server is in power
off state. Off = Input power is not present, the power supply
has failed, or the LED itself has failed. A power LED is also on the
rear of the server.Note: To remove all electrical power from the server, you must disconnect the power cord from the electrical outlet.
- System Error LED: On = A system error has occurred. An LED on the Light Path Diagnostics panel on the system board is also lit to help isolate the error. A system error LED is also on the front of the server.
LEDs on the rear of the X336 server
Figure 2. LEDs on the
rear of the X336 management console server
- Ethernet Activity LED: On = The Ethernet link is bad. Off = Ethernet activity is not occurring. Flashing = Ethernet activity is occurring.
- Ethernet Link Status LED: On = The Ethernet link is okay. Off = The Ethernet link is bad.
- Location LED: Use this blue LED to visually locate the server if it is in a location with numerous other servers. You can use IBM Director to light this LED remotely. (Not used on the DS8000®.)
- Power LED: On = Input power (ac) is present at the server.
Off = Input power (ac) is not present, the power supply has failed,
or the LED itself has failed. A power LED is also on the front of
the server.Note: To remove all electrical power from the server, you must disconnect the power cord from the electrical outlet.
- Power Input LED: On = Input power (ac) is present at the server. Off = Input power is not present at the server. A power LED is also on the front of the server.
- Power Output LED: On = The power supply is providing output power (dc) to the server. Off = The power supply is not providing output power (dc) to the server.
- System Error LED: On = A system error has occurred. An LED on the Light Path Diagnostics panel on the system board is also lit to help isolate the error. A system error LED is also on the front of the server.
