CEC enclosure LED indicators (Models 941, 951)

This section contains FRUs that have LED indicators. Each listed assembly is shown with a description of its LEDs. While CEC enclosure LED indicators might indicate a failure, they should not be used as a starting point for a repair.

Table 1. List of CEC enclosure assemblies with LEDs
Assembly	Reference
CEC enclosure (front)	Figure 1
CEC enclosure (left rear)	Figure 2
CEC enclosure (rear right)	Figure 3

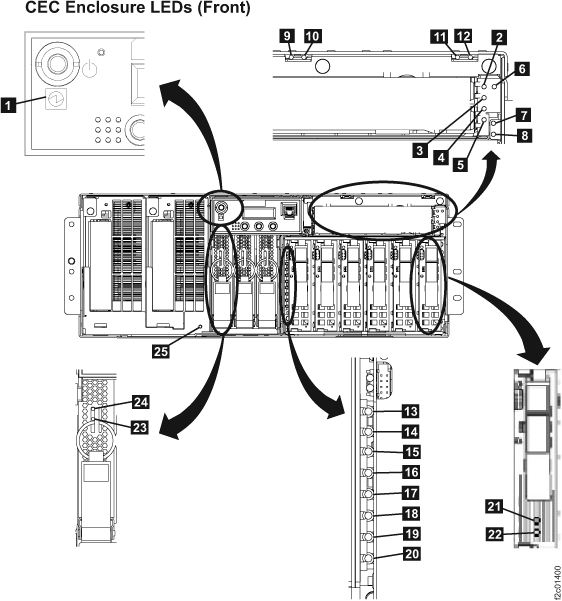

Figure 1. LED CEC enclosure front

Table 2. Interpreting the LEDs on the CEC enclosure (front)
Index	LED Function	Location	Color	LED Off	LED On	LED Flash
1	Power for CEC enclosure	MTMS	green	no input power	enclosure on	enclosure standby
2	Power for removable media upper slot	P4-D1	green	power off	power on	n/a
3	Identify for removable media upper slot	P4-D1	amber	normal	action	identify
4	Power for removable media lower slot	P4-D2	green	power off	power on	n/a
5	Identify for removable media lower slot	P4-D2	amber	normal	action	identify
6	Identify for media backplane assembly	P4	amber	normal	n/a	identify
7	Power for CEC enclosure	P4	green	power off	power on	n/a
8	Attention and identify for CEC enclosure		amber	normal	attention	identify
9	Identify for CEC enclosure fan	A1	amber	normal	n/a	identify
10	Power for CEC enclosure fan	A1	green	power off	power on	n/a
11	Identify for CEC enclosure fan	A2	amber	normal	n/a	identify
12	Power for CEC enclosure fan	A2	green	power off	power on	n/a
13	Identify for CEC enclosure disk drive backplane assembly	P3	amber	normal	n/a	identify
14	(not used in storage CECs)
15	Identify for CEC enclosure disk drive	P3-D1	amber	normal	action	identify
16	Identify for CEC enclosure disk drive	P3-D2	amber	normal	action	identify
17	Identify for CEC enclosure disk drive	P3-D3	amber	normal	action	identify
18	Identify for CEC enclosure disk drive	P3-D4	amber	normal	action	identify
19	Identify for CEC enclosure disk drive	P3-D5	amber	normal	action	identify
20	Identify for CEC enclosure disk drive	P3-D6	amber	normal	action	identify
21	Activity for CEC enclosure disk drive	P3-Dx	green	not active	n/a	activity
22	Identify for CEC enclosure disk drive	P3-Dx	amber	normal	action	identify
23	Identify for CEC enclosure system processor voltage card	P2-Cx	amber	normal	n/a	fast: identify slow: com fail
24	Power for CEC enclosure system processor voltage card	P2-Cx	green	standby off	system on	standby
25	Identify for CEC enclosure system processor backplane assembly	P2	amber	normal	n/a	identify

CEC enclosure (left rear)

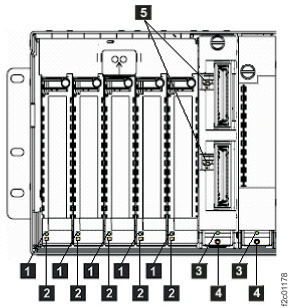

Figure 2. LED CEC enclosure left rear

Table 3. Interpreting the LEDs on the CEC enclosure (left rear)
Index	LED Function	Location	Color	LED Off	LED On	LED Flash
1	Power for CEC enclosure PCI slots 1-5	P1-Cx	green	power off	power on	n/a
2	Identify for CEC enclosure PCI slots 1-5	P1-Cx	amber	normal	n/a	identify
3	Power for CEC enclosure GX slots 8-9	P1-Cx	green	power off	power on	n/a
4	Identify for CEC enclosure GX slots 8-9	P1-Cx	amber	normal	n/a	identify
5	Identify for RIO ports 1 and 2	P1-C8-Tx	amber	normal	n/a	identify

CEC enclosure power supply (rear right)

Figure 3. LED CEC enclosure right rear

Note: Figure 3 shows a VPD pass-through card with two Ethernet ports. Some CEC enclosures have a VPD pass-through card with four Ethernet ports. The cards are functionally equivalent, and the LED definitions for Ethernet port link (index 4), Ethernet port activity (index 5), and CEC enclosure identify (index 6) remain the same.

Table 4. Interpreting the LEDs on the CEC enclosure (right rear)
Index	LED Function	Location	Color	LED Off	LED On	LED Flash
1	Input power for CEC enclosure power supply	E1, E2	green	no input	input good	n/a
2	Output power for CEC enclosure power supply	E1, E2	green	standby off	output on	standby
3	Identify for CEC enclosure power supply	E1, E2	amber	normal	n/a	fast: identify slow: com fail
4	Link for Ethernet port	P1-C10-T1,T2	green	link bad	link OK	n/a
5	Activity for Ethernet port	P1-C10-T1,T2	green	no activity	n/a	activity
6	Identify for CEC enclosure VPD pass-through card	P1-C10	amber	normal	n/a	identify
7	Link for HMC Ethernet port	P1-C11-T3,T4	green	link bad	link OK	n/a
8	Activity for HMC Ethernet port	P1-C11-T3,T4	bi-color	no activity	n/a	green: activity
9	Attention and identify for CEC enclosure	P1	amber	normal	attention	identify
10	Identify for CEC enclosure service processor card	P1-C11	amber	normal	n/a	identify
11	Identify for CEC enclosure I/O backplane	P1	amber	normal	n/a	identify
12	Network	P1-C11	green	undefined	undefined	n/a
