Management console (MC) server location codes (Models 98x)

The figures and tables that follow contain information for the small form factor management console.

Small form factor management console

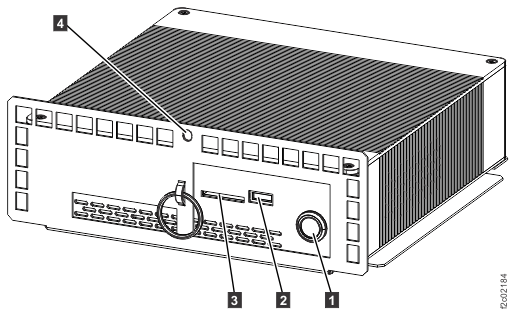

Figure 1. Model 98x management console (front)
HMC management console (front)
Table 1. Location codes for the Management Console (HMC) server
Index Component
1 Power button and indicator
2 USB-3 connection
3 SDHC media slot
4 Retaining screw

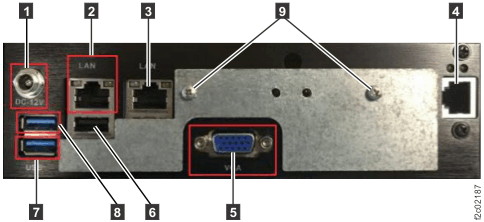

Figure 2. Model 98x management console cable connections (rear)
Model 98x management console cable connections (rear)
Table 2. Small form factor management console connections (rear)
Index Management console connection or component
1 Power
2 Ethernet eth3 (gray)
3 Ethernet eth2 (customer)
4 Ethernet eth0 (black)
5 VGA to keyboard/monitor patch panel
6 USB-2 to modem (cable still exists if modem is not present)
7 USB-3 to keyboard/monitor patch panel
8 Not used
9 Cover plate retaining screws
