DS8000 Service Documentation Version 7.5

Checking the rack switch settings

Procedure

  1. Verify the setting of the following switches on Rack-1.
    Table 1. Switch settings and locations
    Switch Setting Location Figure reference
    Battery enclosure circuit breakers CB0 and CB1. On (up) On each battery assembly (rear of rack)  4  in Figure 1
    UEPO red switch Off (in at bottom) Rack operator panel (front of rack)
    Note: Press the recessed switch towards the bottom. It will appear flat when off.
    		 Figure 2
    RPC card DIP switches 1, 2, 4, 5, 6

    (Both cards)

    		 Off (right) Both RPC cards (top rear of rack)  1  in Figure 1
    RPC card DIP switch 3

    (Both cards)

    		 Off (right) zSeries power feature is not installed (LR card)
    Note: The ZLR card shown in  2  in Figure 1 differs from the LR card in that it has four large connectors on the left side.
    		  1  in Figure 1

    On (left)

    		 zSeries power feature is installed (ZLR card)  1  in Figure 1
    Local Remote switch Local (down) LR or ZLR card (rear of rack)  2  in Figure 1

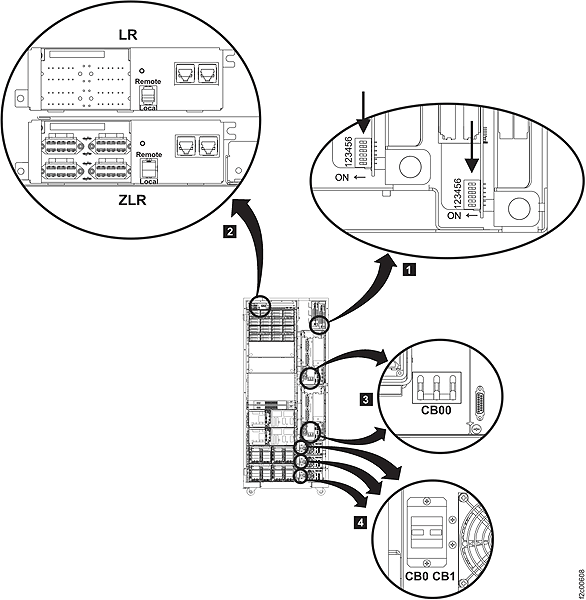

    Figure 1. Rack rear view
    Rear view of rack with callouts for LR card switch, RPC Card, CB00, and IBU Circuit breaker
    Figure 2. UEPO red switch location (switch located on side of rack operator panel, behind front door)
    UEPO red switch location behind front door
  2. Continue verifying the settings of the following switches on Rack-1.
    Table 2. Switch settings and locations
    Switch Setting Location Figure reference
    Primary power supply circuit breaker CB00 Off (down) On each PPS, on the AC input power module (rear of rack)  3  in Figure 1
    Primary power supply sequencer module enable/disable switches Enabled (up) Three switches on each sequencer module (rear of rack)  1  in Figure 3
    PPS 5/12 V DDM power module enable/disable switches Enabled (up) Two switches on each 5/12 V DDM power module (rear of rack)  1  in Figure 4
    Enable/disable switch on the PPS booster power module (Power Line Disturbance PLD module) Enabled (up) Optional module, only present for PLD feature. One on each PPS on booster power module (rear of rack) Callout label 1 in Figure 5.

    The enable disable switches for the primary power supply sequencer module are displayed in Figure 3.

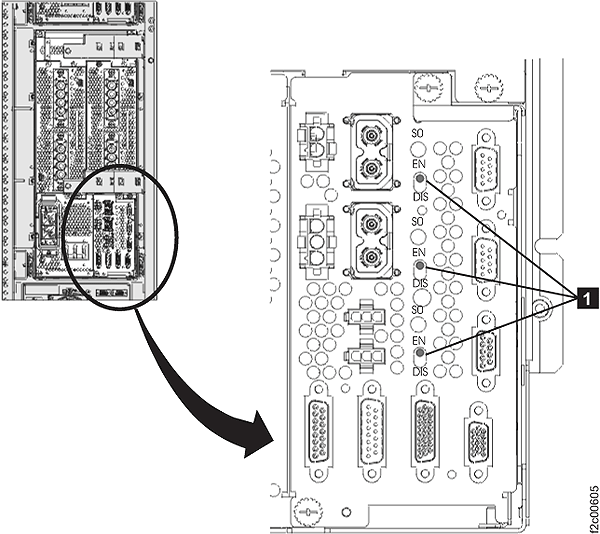

    Figure 3. PPS sequencer module and LED enable/disable switch
    Sequencing module in PPS, as well as the LED and enable/disable switch

    Figure 4 shows the enable disable switches for the primary power supply DDM.

    Figure 4. Enable/disable switches on a 5/12 V DDM power module (PPS)
    The enable disable switches on a 5 12 volt DDM power module
    Figure 5 shows the enable disable switch on the Power Line Disturbance module.
    Figure 5. Enable/disable switch on booster power module
    Enable/disable switch on booster power module
  3. Do you have additional storage expansion racks?
  4. Verify the setting of the following switches on each expansion rack. Each rack has:
    • One UEPO switch
    • Two PPSs
    • Zero to three battery enclosures
    Table 3. Switch settings and locations for storage expansion racks
    Switch Setting Location Figure reference
    UEPO red switch Off (down) Rack operator panel (front of rack)
    Note: Press the recessed switch towards the bottom. It will appear flat when off.
    		 Figure 2
    Primary power supply CB00 Off (down) On AC input power module  3  in Figure 1
    Battery enclosure circuit breakers CB0 and CB1. On (up) On each battery enclosure (rear of rack)  4  in Figure 1
    Primary power supply sequencer module enable/disable switches Enabled (up) Three switches on each sequencer module (rear of rack)  1  in Figure 3
    Primary power supply DDM module enable/disable switches Enabled (up) Two switches on each 5/12 V DDM power module (rear of rack)  1  in Figure 4
    Enable/disable switch on the PPS booster power module (Power Line Disturbance PLD module) Enabled (up) Optional module, only present for PLD feature. One on each PPS on booster power module (rear of rack) Callout label 1 in Figure 5.
  5. Continue with Checking rack UEPO switch operation.
