Routing and connecting customer cables to the storage facility

Procedure

Record the date and time as follows:
1. Record the stop date and time for the HMC Customization and Communication Tests phase in Table 3, in section Recording information for the installation report.
2. Record the start date and time for the End of Install and Clean-up phase in Table 3, in section Recording information for the installation report.
Has the customer ordered the remote power control feature?
- Yes, go to the next step.
- No, go to step 4.
Route the remote power control cables 1 from each host up through the tailgate to the ZLR remote power control card connectors 3 . Use cable ties to fasten the cable to the frame 2 . See Figure 1.

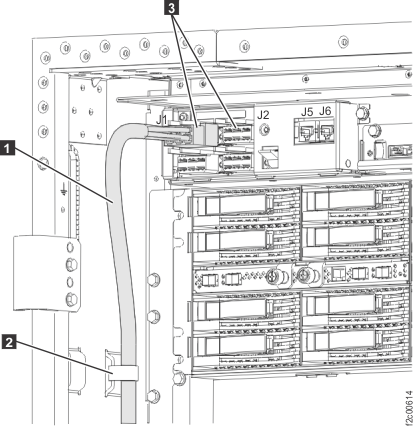

Figure 1. Remote power control cables from host to ZLR card

Attention: The remote power control feature will be enabled in the next step. Remind your customers that they must test it.
Ask the customer to supply a diagram or output from the DS8000® Storage Manager to define the connectivity between the DS8000 host card ports and system host card ports.
Label fibre host cables from each customer host adapter.
Route the cables 1 to the rear of the appropriate DS8000 frame. See Figure 2.
Note: To allow correct connection and disconnection of external cables, label cables using the customer's current cable-identification plan and the labels provided by your customer.
In the tailgate, squeeze the black release levers 2 , pivot the retention bracket up and then remove it.
Figure 2. Tailgate cable and Fibre Channel cable retention (Model 95x shown, Model 96x is similar)

This step provides information useful for connecting customer host cables to the I/O enclosure host adapter card ports.

The customer may reference the host adapter port locations by using the information displayed in the DS Storage Manager or DS CLI.
For an example of DS Storage Manager I/O port information, see Figure 3.
For an example of DS CLI I/O port information, see Figure 4.
For an example of host adapter card port location codes used in serviceable event FRU lists, see Figure 5.
For information on Rack-1 rear view of I/O enclosure HA Port locations and IOPORT numbers, see Table 1.
For information on Rack-2 rear view of I/O enclosures HA Port locations and IOPORT numbers, see Table 2.

Figure 3. DS Storage Manager HA card port ID and location code

Figure 4. DS CLI host adapter card port ID

dscli> lsioport -dev IBM.2107-75RA271
Date/Time: July 13, 2010 2:40:33 PM PDT IBM DSCLI Version: 5.4.2.460 DS: IBM.2107-75RA271
ID    WWPN             State  Type             topo     portgrp
===============================================================
I0200 50050763091006FE Online Fibre Channel-SW SCSI-FCP 0
I0201 50050763091046FE Online Fibre Channel-SW SCSI-FCP 0

Figure 5. Location codes for device adapter and host adapter cards

Table 1. Rack-1 rear view of I/O enclosure HA Port locations and IOPORT numbers
R1-XI1 I/O Enclosure						R1-XI2 I/O Enclosure
HA Card Slot C1	HA Card Slot C2	DA Card Slot C3	HA Card Slot C4	HA Card Slot C5	DA Card Slot C6	HA Card Slot C1	HA Card Slot C2	DA Card Slot C3	HA Card Slot C4	HA Card Slot C5	DA Card Slot C6
C1-T0 I0000	C2-T0 I0010		C4-T0 I0030	C5-T0 I0040		C1-T0 I0100	C2-T0 I0110		C4-T0 I0130	C5-T0 I0140
C1-T1 I0001	C2-T1 I0011		C4-T1 I0031	C5-T1 I0041		C1-T1 10I01	C2-T1 I0111		C4-T1 I0131	C5-T1 I0141
C1-T2 I0002	C2-T2 I0012		C4-T2 I0032	C5-T2 I0042		C1-T2 I0102	C2-T2 I0112		C4-T2 I0132	C5-T2 I0142
C1-T3 I0003	C2-T3 I0013		C4-T3 I0033	C5-T3 I0043		C1-T3 I0103	C2-T3 I0113		C4-T3 I0133	C5-T3 I0143
R1-XI3 I/O Enclosure						R1-XI4 I/O Enclosure
HA Card Slot C1	HA Card Slot C2	DA Card Slot C3	HA Card Slot C4	HA Card Slot C5	DA Card Slot C6	HA Card Slot C1	HA Card Slot C2	DA Card Slot C3	HA Card Slot C4	HA Card Slot C5	DA Card Slot C6
C1-T0 I0200	C2-T0 I0210		C4-T0 I0230	C5-T0 I0240		C1-T0 I0300	C2-T0 I0310		C4-T0 I0330	C5-T0 I0340
C1-T1 I0201	C2-T1 I0211		C4-T1 I0231	C5-T1 I0241		C1-T1 I0301	C2-T1 I0311		C4-T1 I0331	C5-T1 I0341
C1-T2 I0202	C2-T2 I0212		C4-T2 I0232	C5-T2 I0242		C1-T2 I0302	C2-T2 I0312		C4-T2 I0332	C5-T2 I0342
C1-T3 I0203	C2-T3 I0213		C4-T3 I0233	C5-T3 I0243		C1-T3 I0303	C2-T3 I0313		C4-T3 I0333	C5-T3 I0343

Table 2. Rack-2 rear view of I/O enclosures HA Port locations and IOPORT numbers
R2-XI1 I/O Enclosure						R2-XI2 I/O Enclosure
HA Card Slot C1	HA Card Slot C2	DA Card Slot C3	HA Card Slot C4	HA Card Slot C5	DA Card Slot C6	HA Card Slot C1	HA Card Slot C2	DA Card Slot C3	HA Card Slot C4	HA Card Slot C5	DA Card Slot C6
C1-T0 I0400	C2-T0 I0410		C4-T0 I0430	C5-T0 I0440		C1-T0 I0500	C2-T0 I0510		C4-T0 I0530	C5-T0 I0540
C1-T1 I0401	C2-T1 I0411		C4-T1 I0431	C5-T1 I0441		C1-T1 I0501	C2-T1 I0511		C4-T1 I0531	C5-T1 I0541
C1-T2 I0402	C2-T2 I0412		C4-T2 I0432	C5-T2 I0442		C1-T2 I0502	C2-T2 I0512		C4-T2 I0532	C5-T2 I0542
C1-T3 I0403	C2-T3 I0413		C4-T3 I0433	C5-T3 I0443		C1-T3 I0503	C2-T3 I0513		C4-T3 I0533	C5-T3 I0543
R2-XI3 I/O Enclosure						R2-XI4 I/O Enclosure
HA Card Slot C1	HA Card Slot C2	DA Card Slot C3	HA Card Slot C4	HA Card Slot C5	DA Card Slot C6	HA Card Slot C1	HA Card Slot C2	DA Card Slot C3	HA Card Slot C4	HA Card Slot C5	DA Card Slot C6
C1-T0 I0600	C2-T0 I0610		C4-T0 I0630	C5-T0 I0640		C1-T0 I0700	C2-T0 I0710		C4-T0 I0730	C5-T0 I0740
C1-T1 I0601	C2-T1 I0611		C4-T1 I0631	C5-T1 I0641		C1-T1 I0701	C2-T1 I0711		C4-T1 I0731	C5-T1 I0741
C1-T2 I0602	C2-T2 I0612		C4-T2 I0632	C5-T2 I0642		C1-T2 I0702	C2-T2 I0712		C4-T2 I0732	C5-T2 I0742
C1-T3 I0603	C2-T3 I0613		C4-T3 I0633	C5-T3 I0643		C1-T3 I0703	C2-T3 I0713		C4-T3 I0733	C5-T3 I0743

Feed the host cables up through the tailgate and route them to the destination I/O enclosure and host card and plug them in.
Notes:
- Save the wrap tools removed from each Fibre host card. The wrap tool can be used as a dust cover and also a wrap tool for diagnosis and repair.
- There are two types of Fibre Channel cards:
  - Short wave
  - Long wave
Secure the host cables in the cable guide by pressing them into the slots.
Reinstall the retention bracket removed earlier.
Reinstall the tailgate brackets in all frames using the screws 2 removed earlier. Tighten all four screws 1 and 2 . See Figure 6
Figure 6. Tailgate frame bracket
Continue with Finish installation and cleanup.
