Ethernet (8-port) switch part numbers, Model 961

Information about Ethernet switch parts is listed below. See Figure 1 for switch locations. See Figure 2 and Figure 3 for switch versions.

Note: The following part numbers are the most recent for this version of the Parts Catalog. Your storage facility or serviceable event FRU list might contain an older or newer part number. The parts ordering system recognizes all valid part numbers and will automatically substitute an available part number as needed.
Figure 1. 8-port Ethernet switch locations
8-port Ethernet switch locations

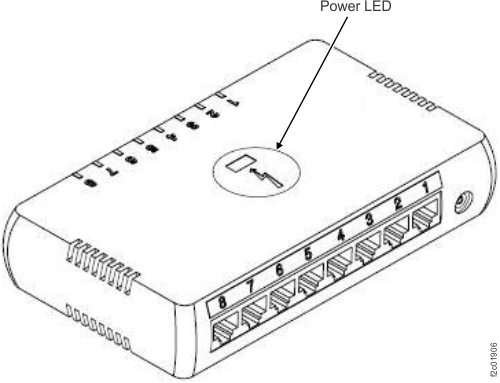

Figure 2. 8-port Ethernet switch, version 1 (power LED at center of switch)
8-port Ethernet switch, version 1 (power LED at center of switch)

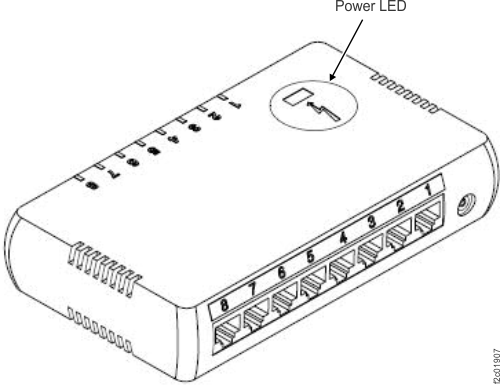

Figure 3. 8-port Ethernet switch, version 2 (power LED at right rear of switch)
8-port Ethernet switch, version 2 (power LED at right rear of switch)
Table 1. Ethernet switch parts (Model 961)
Index Part name Part number
SW1/SW2 8-port Ethernet switch, version 1 (see Figure 2) 98Y3779
SW1/SW2 8-port Ethernet switch, version 2 (see Figure 3) 98Y3777
Note: Order the Ethernet switch version that matches the existing switch. If substitutions are necessary, they will be handled by the parts system.

Cables for Ethernet switch SW1 (left)

To find part numbers for the cables that are connected to Ethernet switch SW1 (the left Ethernet switch), see Figure 4 and Table 2.

Figure 4. 8-port Ethernet cable locations (1 through 9)
8-port Ethernet cable locations (1 through 9)
Table 2. Cables for Ethernet switch SW1 (left) (Model 961)
Index Part name Part number
1 Cable, Ethernet switch SW1 -to- HMC (1750 mm black) 45W2258
2 (Call your next level of support)
3 Cable, Ethernet switch SW1 -to- CEC enclosure XC11 FSP (1960 mm black) 99Y0490
4 Cable, Ethernet switch SW1 -to- CEC enclosure XC22 FSP (2155 mm black) 99Y0491
5 Cable, Ethernet switch SW1 -to- CEC enclosure XC11 (2010 mm black) 99Y0492
6 Cable, Ethernet switch SW1 -to- CEC enclosure XC22 (2205 mm black) 99Y0493
7 Not used
8 Not used
Notes:
  1. XC1 is the upper CEC enclosure.
  2. XC2 is the lower CEC enclosure.

Cables for Ethernet switch SW2 (right)

To find part numbers for the cables that are connected to Ethernet switch SW2 (the right Ethernet switch), see Figure 4 and Table 3.

Table 3. Cables for Ethernet switch SW2 (right) (Model 961)
Index Part name Part number
1 Cable, Ethernet switch SW2 -to- HMC (1580 mm gray) 45W2262
2 (Call your next level of support)
3 Cable, Ethernet switch SW2 -to- CEC enclosure XC11 FSP (1780 mm gray) 99Y0494
4 Cable, Ethernet switch SW2 -to- CEC enclosure XC22 FSP (1975 mm gray) 99Y0495
5 Cable, Ethernet switch SW2 -to- CEC enclosure XC11 (1830 mm gray) 99Y0496
6 Cable, Ethernet switch SW2 -to- CEC enclosure XC22 (2025 mm gray) 99Y0497
7 Not used
8 Not used
Notes:
  1. XC1 is the upper CEC enclosure.
  2. XC2 is the lower CEC enclosure.
