Information about Ethernet switch tray fan is listed below. See Figure 1 for switch locations.
Note: The following part numbers are the most
recent. Your storage facility or serviceable event FRU list might
contain an older or newer part number. The parts ordering system recognizes
all valid part numbers and will automatically substitute an available
part number as needed.

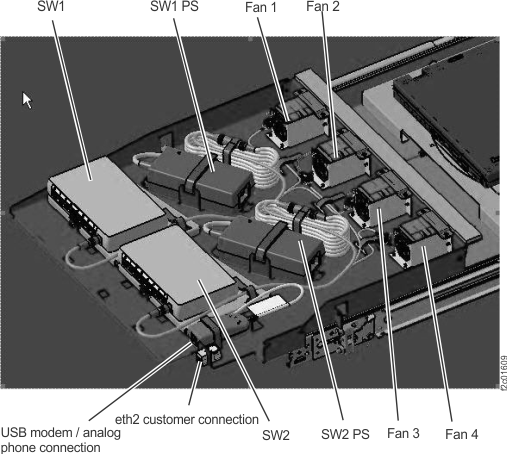

Figure 1. Ethernet switch tray fans (Model 951)
| Index | Part name | Part number |
|---|---|---|
| Fan 1, 2, 3 or 4 | Fan assembly | 26K8083 |
| Power cable to SW1, Fan 1 and Fan 3 | Fan power cable | 45W9428 |
| Power cable to SW2, Fan 2 and Fan 4 | Fan power cable | 45W9428 |
| Fan clamp (across top of fan) | Fan clamp | 45W9449 |
| Fan clamp screw | Fan clamp screw | 87G4617 |
Figure 2. Ethernet switch tray air baffle (Model 951)
| Index | Part name | Part number |
|---|---|---|
| 1 | Screw | 23R1520 |
| 2 | Ethernet tray air baffle | 45W9632 |
