DS8000 Service Documentation Version 7.5

MAP1100 Section-8 RMC HMC Resource Managers

Procedure

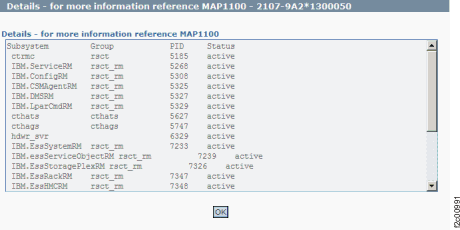

  1. Figure 1 is an example of the detail window for the RMC HMC resource managers (in this example, an error condition is not shown).
    Figure 1. Window: RMC HMC resource managers details
    Window: RMC HMC resource managers details
  2. Description: One or more resource managers were found inactive.
  3. Action: Contact your next level of support. The next level of support must remotely connect to repair this condition.
  4. For next level of support only: The command :/var/esshmc/log/lssrc -a is run and looks for active status for the following:
    • IBM.ConfigRM
    • ctrmc
    • cthags
    • cthats
    • IBM.ServiceRM
    • IBM.DMSRM
    • IBM.EssDrawerRM
    • IBM.EssHMCRM
    • IBM.EssStoragePlexRM
    • IBM.EssSystemRM
    • IBM.EssRackRM
    • IBM.essServiceObjectRM
    • IBM.LparCmdRM
