DS8000 Service Documentation Version 7.5

MAP1100 Section-7 Verify HMC Peer Node

Procedure

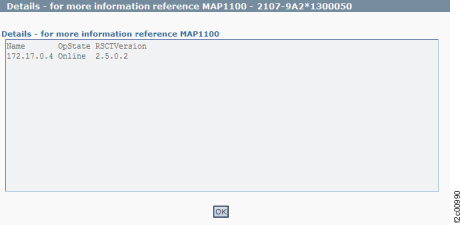

  1. Figure 1 is an example of the detail window for the HMC peer node (in this example, an error condition is not shown).
    Figure 1. Window: HMC peer node details
    Window: HMC peer node details
  2. Description: An HMC node IP address that is expected to be online was found offline.
  3. Action: Display and repair any open serviceable events that are related to the private networks. If there are none, contact your next level of support. The next level of support must remotely connect to repair this condition.
  4. For next level of support only: The command :/usr/sbin/rsct/bin/lsrpdomain is run and is looking for the IP address to be "Online" for each active HMC in this storage complex.
