About this task
- Figure 1 shows an example of the details window for the RIO Loop Status check (in this example, a good condition is shown).
- Description: Verifies from each CEC whether the RIO loop
is complete:
- The Details window indicates whether there are open RIO loops.
- When an open loop is detected, the following message is displayed:
Detected problem in RIO Loop. Please run CdaPreVerify to isolate the problem in RIO loop.
- Action: On failed check, run CdaPreVerify to isolate the problem in the RIO loop. CdaPreVerify may open additional serviceable events to isolate the problem. Refer to MAP1214 Run CdaPreVerify.

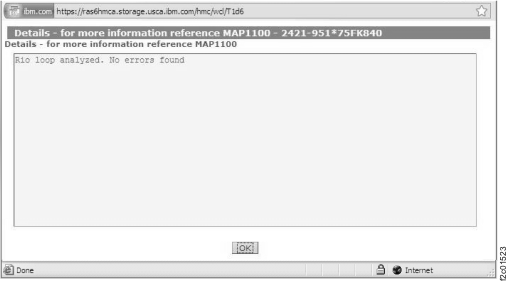

Figure 1. Window: RIO loop status details
