DS8000 Service Documentation Version 7.5

MAP1100 Section-40 Memory Configuration

Procedure

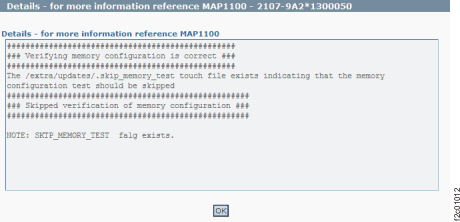

Figure 1 is an example of the detail window for the memory configuration check (in this example, an error condition is not shown).
Figure 1. Window: Memory configuration details
Description: Verifies that there is no deconfigured memory on any of the systems under the selected SF. Displays the WARNING in the main panel in two cases:
- When there is deconfigured memory on any of the systems in the selected SF.
- When the system state is in a state where the memory configuration check cannot be run.
Action: Depending on the previous case, do the appropriate action:
- For the deconfigured memory case, display and repair any related open serviceable events. See MAP4070 CEC memory problem.
- When the memory configuration check cannot be run, check the state of CECs in the selected SF. See MAP1213 Displaying Server and Partition Properties or contact your next level of support.
