DS8000 Service Documentation Version 7.5

MAP1100 Section-17 Storage Facility Power State

About this task

Note: If the Large File Transfer (the tenth System Check Type status from the top) is FAILED, this System Check Type cannot be displayed.

Procedure

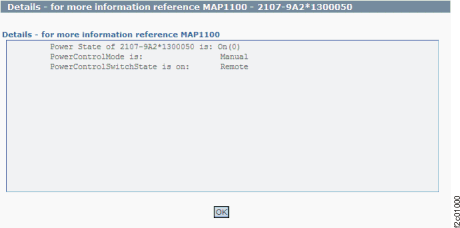

  1. Figure 1 is an example of the detail window for the storage facility power state (in this example, an error condition is not shown).
    Figure 1. Window: Storage facility power state details
    Window: Storage facility power state details
  2. Description: The storage facility power state is not as expected.
  3. Action: Ensure that any power setting changes have had time to complete and that no repair actions are in progress. Contact your next level of support. The next level of support must remotely connect to repair this condition.
  4. Next level of support only:
    lsrsrc IBM.EssStorageFacility powerStateResource
Persistent Attributes for IBM.EssStorageFacility
resource 1:
		powerState = 0

POSSIBLE VALUES:
****************
state_ON = 0;
state_OFF = 1;
state_POWERING_ON = 2;
state_POWERING_OFF = 3;
state_ERROR = 4;

ERROR EVALUATION
****************
States 0 to 3 are acceptable, other values are flagged as errors
