DS8000 Service Documentation Version 7.5

MAP1100 Section-15 LPARs Activated

About this task

Note: If the Large File Transfer (the tenth System Check Type status from the top) is FAILED, this System Check Type cannot be displayed.

Procedure

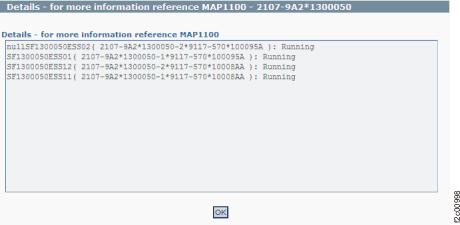

  1. Figure 1 is an example of the detail window for the LPARs that are activated (in this example, an error condition is not shown).
    Figure 1. Window: LPARs activated details
    Window: LPARs activated details
  2. Description: An LPAR does not have a status of running.
  3. Action: Display and repair any open serviceable events that are related to the CEC enclosures. If there are none, contact your next level of support. The next level of support must remotely connect to repair this condition.
  4. Next level of support only: The command /opt/hsc/bin/lssyscfg -r lpar -m <MTMS like 9117-MMA*100096A> -F state,name is run and checks for each LPAR to have "Running" status.
