DS8000 Service Documentation Version 6.3.3

Storage enclosure part numbers, Models 951, 95E (24 DDM slots)

Information about storage enclosure parts is listed in this topic. Use Table 1 as a directory.

Note: The following part numbers are the most recent for this version of the Parts Catalog. Your storage facility or serviceable event FRU list might contain an older or newer part number. The parts-ordering system recognizes all valid part numbers and automatically substitutes an available part number as needed.

Table 1. Start here, storage enclosure parts, 24 DDM slots (Models 951, 95E)
Part name	Figure
Cables, Fibre Channel (FC-AL), optical	Table 4
Disk drive dummy module	Figure 1
Disk drive module (DDM)	Figure 1
Fibre Channel interface card (FCIC), optical	Figure 2
Solid-state disk (SSD)	Figure 1
Storage enclosure midplane	Figure 1
All other parts	(Find the appropriate figure below)

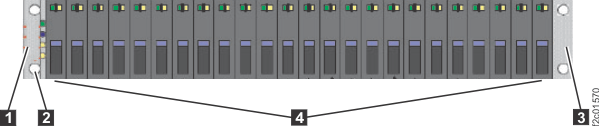

Figure 1. Storage enclosure parts, front

Table 2. Storage enclosure parts, front, 24 DDM slots (Models 951, 95E)
Index	Part name	CCIN (note 1)	Part number	Allowable substitute CCIN(s) (note 2)
1	Left decorative bezel	N/A	99Y0098	N/A
2	Screw, M5 x 16 Hex	N/A	23R1521	N/A
3	Storage enclosure midplane (full chassis)	GPBP	45W8703	None
4	Disk drive dummy module	N/A	45W8680	N/A
4	Disk drive module (DDM), 73 GB 15K RPM	G07C	45W3868	None
4	Disk drive module (DDM), 146 GB 15K RPM (note 2)	G14C	45W3869	G14L or contact next level of support.
4	Disk drive module (DDM), 146 GB 15K RPM, category 2	G14G	98Y3358	G14C, G14L
4	Disk drive module (DDM), 146 GB 15K RPM, category 3 (note 2)	G14L	00ND143	None
4	Disk drive module (DDM), 146 GB 15K RPM, self-encrypting	I14C	45W3950	I14L
4	Disk drive module (DDM), 146 GB 15K RPM, self-encrypting, category 3 (note 2)	I14L	00ND145	None
4	Disk drive module (DDM), 300 GB 15K RPM (note 2)	G30C	45W9614	G30L or contact next level of support.
4	Disk drive module (DDM), 300 GB 15K RPM, category 2	G30G	98Y3359	G30C, G30L
4	Disk drive module (DDM), 300 GB 15K RPM, category 3 (note 2)	G30L	98Y6319	None
4	Disk drive module (DDM), 300 GB 15K RPM, self-encrypting	I30C	45W9615	I30L
4	Disk drive module (DDM), 300 GB 15K RPM, self-encrypting, category 3 (note 2)	I30L	98Y6320	None
4	Solid State Disk (SSD), 300 GB	J301	45W8704	J302 J303
4	Solid State Disk (SSD), 300 GB category 2 (note 2)	J302	98Y2695	None
4	Solid State Disk (SSD), 300 GB category 3 (note 2)	J303	98Y4043	J302
4	Solid State Disk (SSD), 400 GB (note 2)	J401	99Y1324	None
4	Solid State Disk (SSD), 400 GB category 2	J402	98Y4042	J401
4	Solid State Disk (SSD), 400 GB, self-encrypting	P401	99Y1329	None
4	Disk drive module (DDM), 450 GB 10K RPM	G45B	45W7731	G45F, G45K
4	Disk drive module (DDM), 450 GB 10K RPM, category 2 (note 2)	G45F	98Y3275	G45K
4	Disk drive module (DDM), 450 GB 10K RPM, category 3 (note 2)	G45K	00WV988	None
4	Disk drive module (DDM), 450 GB 10K RPM, self-encrypting	I45B	45W7733	I45F
4	Disk drive module (DDM), 450 GB 10K RPM, self-encrypting, category 2 (note 2)	I45F	00WV990	None
4	Disk drive module (DDM), 600 GB 10K RPM	G60B	45W7732	G60F, G60K
4	Disk drive module (DDM), 600 GB 10K RPM, category 2 (note 2)	G60F	98Y3276	G60K
4	Disk drive module (DDM), 600 GB 10K RPM, category 3 (note 2)	G60K	00ND138	None
4	Disk drive module (DDM), 600 GB 10K RPM, self-encrypting	I60B	45W7734	I60F, I60K
4	Disk drive module (DDM), 600 GB 10K RPM, self-encrypting, category 2 (note 2)	I60F	00ND126	I60K
4	Disk drive module (DDM), 600 GB 10K RPM, self-encrypting, category 3 (note 2)	I60K	01NN786	None
4	Disk drive module (DDM), 900 GB 10K RPM	G90B	45W9605	G90F, G90K
4	Disk drive module (DDM), 900 GB 10K RPM, category 2 (note 2)	G90F	98Y3277	G90K
4	Disk drive module (DDM), 900 GB 10K RPM, category 3 (note 2)	G90K	00ND140	None
4	Disk drive module (DDM), 900 GB 10K RPM, self-encrypting	I90B	45W9609	I90F
4	Disk drive module (DDM), 900 GB 10K RPM, self-encrypting, category 2 (note 2)	I90F	00ND129	None
4	Disk drive module (DDM), 1.2 TB 10K RPM, self-encrypting	I1CB	98Y6032	I1CF, I1CK
4	Disk drive module (DDM), 1.2 TB 10K RPM, self-encrypting, category 2 (note 2)	I1CF	00ND132	I1CK
4	Disk drive module (DDM), 1.2 TB 10K RPM, self-encrypting, category 3 (note 2)	I1CK	01NN788	None
Notes: Important, read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable. When you order a part number (P/N) reported in a serviceable event or call home record, check whether the parts-ordering system has a conditional substitute for DS8000® series. CCINs that are in parentheses are reported by earlier levels of the LIC bundle. For DDMs and SSDs with multiple CCINs for same size and speed, replace with a different CCIN only if that CCIN appears in the column Allowable substitute CCIN(s).

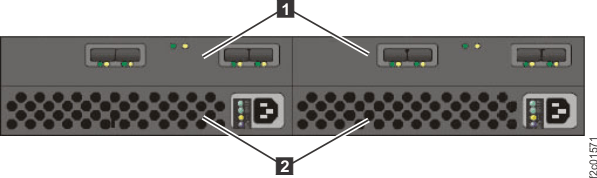

Figure 2. Storage enclosure parts, rear

Table 3. Storage enclosure parts, rear, 24 DDM slots (Models 951, 95E)
Index	Part name	CCIN¹	Part number
1	Fibre Channel interface card (FCIC), optical	GPIC	45W8405
2	Storage enclosure power supply	EPS1	45W8229
Notes: Important, read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable. When you order a part number (P/N) reported in a serviceable event or call home record, check whether the parts-ordering system has a conditional substitute for DS8000 series. CCINs that are in parentheses are reported by earlier levels of the LIC bundle.

Figure 3. Storage enclosure Fibre Channel (FC-AL) cables, rear (T1, T2, T3, T4 connectors)

Storage enclosure locations rear (model 951/95E)

Figure 4. The format of information on a cable bundle label

CAUTION:

Cables must be replaced only one at a time by using the appropriate guided maintenance procedure.

Table 4. Fibre Channel (FC-AL) cables, optical (Models 951, 95E)
Index	Part name	CCIN¹	Part number
1	Cable, Fibre Channel (FC-AL), optical, orange, 1.3 m (4 ft. 3 in.)^{2, 3}	OCBL	45W8817
2	Cable, Fibre Channel (FC-AL), optical, blue, 2.5 m (8 ft. 2 in.)²	OCBL	45W8818
3	Cable, Fibre Channel (FC-AL), optical, blue, 5.6 m (18 ft. 4 in.)²	OCBL	45W8819
4	Cable, Fibre Channel (FC-AL), optical, blue, 26.0 m (85 ft. 4 in.)²	OCBL	98Y5406
Notes: Important, read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable. When you order a part number (P/N) reported in a serviceable event or call home record, check whether the parts-ordering system has a conditional substitute for DS8000 series. Fibre Channel cables are bundled in groups from the factory. Each bundle contains custom-length cables that are individually labeled for specific racks, enclosures, and connectors. The cable bundles cannot be ordered as FRUs. There are individual FRU cables that can be ordered; each is a different length and without location labels. Find the part number on the cable bundle that contains the cable that must be replaced. The parts-ordering system converts the cable bundle part number to a single cable part number that is longer than the longest cable in the cable bundle. Only used in Rack-1 Rack Configuration: AB1, "business class" cabling.
