Earthquake resistance kit part numbers
Use the following sections to locate information about
earthquake resistance kit parts:
Note: The following part numbers are the most recent for this version of the
Parts Catalog. Your storage facility or serviceable event FRU list might contain an older or newer
part number. The parts-ordering system recognizes all valid part numbers and automatically
substitutes an available part number as needed.
Earthquake resistance kit parts at the front of the rack (stiffeners)
Use the figures and tables below to locate information about the earthquake resistance kit brackets (stiffeners) at the front of the rack.
Figure 1. Earthquake
resistance kit parts at the front of the rack
| Index | Part name | Part number |
|---|---|---|
| 1 | Brace extension frame | 22R1317 |
| 2 | Screw | 22R2193 |
| 2a | Nut, earthquake resistance frame Note: If the
rack frame hole is not threaded, then this nut is placed inside the
frame to anchor screw 2 .
|
17P8602 |
| 3 | X-brace | 22R1321 |
| 4 | Screw (20mm) | 1621538 |
| 5 | Washer, Lock | 1622321 |

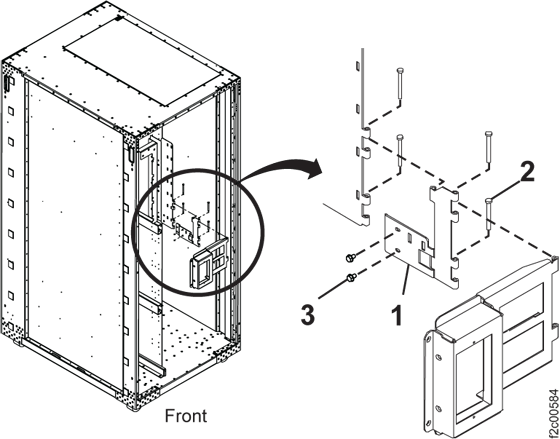

Figure 2. Earthquake
resistance kit parts - Relocation bracket for the operator panel
| Index | Part name | Part number |
|---|---|---|
| 1 | Bracket, relocation | 22R1793 |
| 2 | Pin, pivot | 22R1794 |
| 3 | Screw | 1621842 |
Earthquake resistance kit parts CEC stiffeners
Use the figure and table that follow to locate information about the earthquake resistance kit CEC stiffeners.

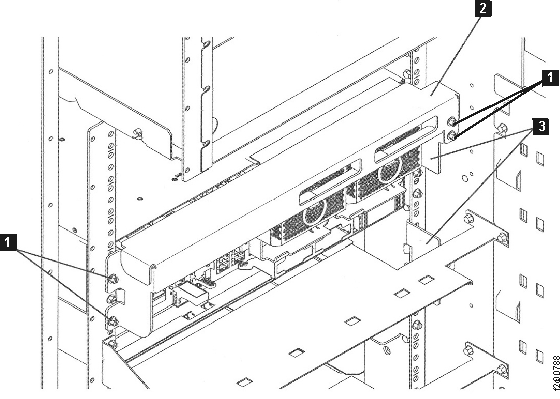

Figure 3. Earthquake
resistance kit parts CEC stiffeners
| Index | Part name | Part number |
|---|---|---|
| 1 | Screw | 23R1520 |
| 2 | Bracket, stiffener | 22R2002 |
| 3 | Bracket, mounting | 17P8485 |
Earthquake resistance kit parts at the rear of the rack (stiffeners)
Use the figures and tables below to locate information about the earthquake resistance kit brackets (stiffeners) at the rear of the rack.

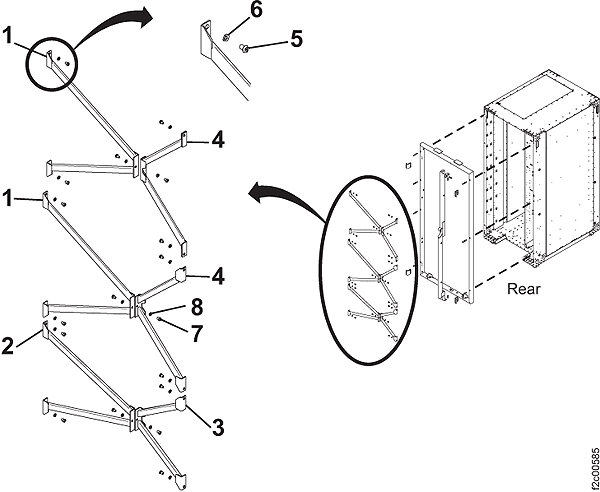

Figure 4. Earthquake
resistance kit V-braces at the rear of the rack
| Index | Part name | Part number |
|---|---|---|
| 1 | V-brace, main, upper | 22R1313 |
| 2 | V-brace, main, lower | 22R1315 |
| 3 | V-brace, power, lower | 22R1316 |
| 4 | V-brace, power, upper | 22R1314 |
| 5 | Screw (20mm) | 1621538 |
| 6 | Washer, Lock | 1622321 |

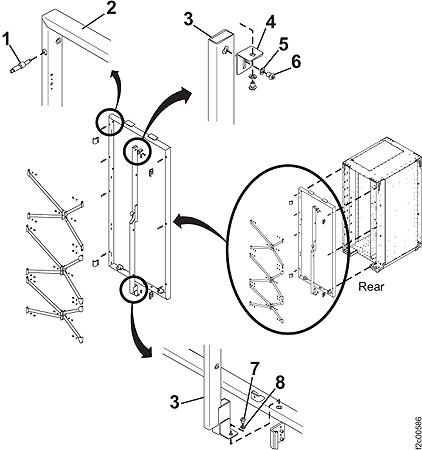

Figure 5. Earthquake
resistance kit parts at the rear of the rack (except V-braces)
| Index | Part name | Part number |
|---|---|---|
| 1 | Screw | 22R2193 |
| 2 | Brace extension frame | 22R1303 |
| 2a | Nut, earthquake resistance frame Note: If the
rack frame hole is not threaded, then this nut is placed inside the
frame to anchor screw 2 .
|
17P8602 |
| 3 | Vertical brace | 22R1304 |
| 4 | Bracket, vertical brace to frame | 22R1305 |
| 5 | Washer | 1622321 |
| 6 | Screw | 1621538 |
| 7 | Screw | 1621538 |
| 8 | Washer | 1622321 |
Earthquake resistance kit parts for non-raised floor (tie-downs)
Use the figure and table below to locate information about the earthquake resistance kit parts that tie the rack to the non-raised floor.
Figure 6. Rack tie-down
parts of the earthquake resistance kit (non-raised floor)
| Index | Part name1 | Part number |
|---|---|---|
| 1 | Leveler | 22R1462 |
| 2 | Jam nut | 22R1463 |
| 3 | Stud | 22R1461 |
| 4 | Load plate | 22R1515 |
| Notes | ||
| 1 - Part of the tie-down hardware kit P/N 22R1472. | ||
Earthquake resistance kit parts for raised floor (tie-downs)
Use the figure and table below to locate information about the earthquake resistance kit parts that tie the rack to the raised floor.

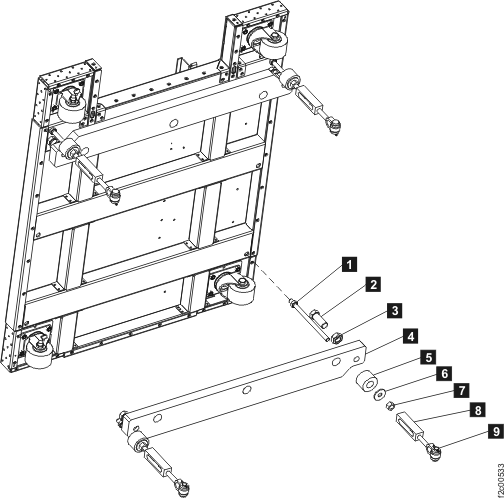

Figure 7. Rack tie-down
parts of the earthquake resistance kit (raised floor)
| Index | Part name | Part number |
|---|---|---|
| 1 | Stud, frame-to-turnbuckle | 22R1464 |
| 2 | Leveler | 22R1462 |
| 3 | Jam nut | 22R1463 |
| 4 | Load plate | 22R1301 |
| 5 | Bushing, rubber | 44P2997 |
| 6 | Washer (M12) | 1 |
| 7 | Nut (M12x1.75) | 2 |
| 8 | Turnbuckle, short3 | 22R1465 |
| 8 | Turnbuckle, long4 | 22R1467 |
| 9 | Spacer, jaw-to-floor hardware | 21L3667 |
Notes:
|
||
