MES and installation instructions location codes (Models 951, 95E)
Physical location codes are used in the MES/Install instructions.
To determine the physical location code for a part, see the appropriate
figure:
| Rack | See |
|---|---|
| Rack-1, 2, 3, 4 | Figure 1 and Figure 2 |

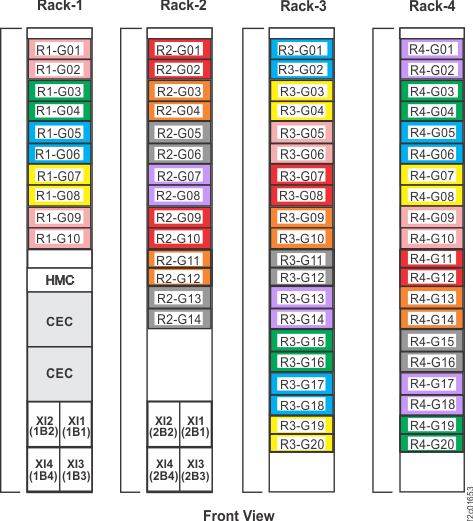

Figure 1. Rack 1-4 storage enclosure and I/O enclosure location codes (front view)

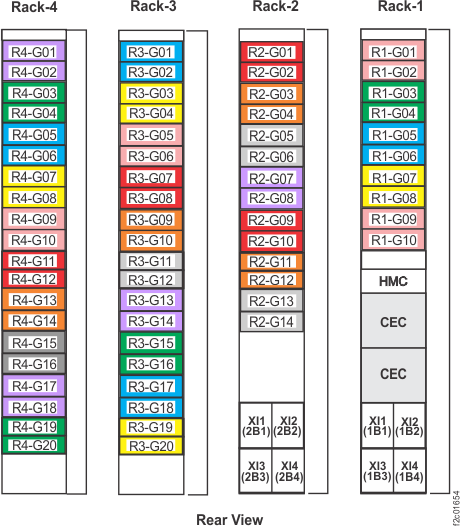

Figure 2. Rack 1-4 storage enclosure
and I/O location codes (rear view)
