DS8000 Service Documentation Version 6.3.3
MES and installation instructions location codes (Models 941, 94E)
Physical location codes are
used in the MES/Install instructions. To determine the physical location
code for a part, see the appropriate figure:
| Rack | See |
|---|---|
| Rack-1 | Figure 1 |
| Expansion rack-2 | Figure 2 |
| Expansion racks-3 and 4 | Figure 2 |
Figure 1. Physical location codes (Rack-1)
Figure 2. Physical location codes (expansion
rack-2)

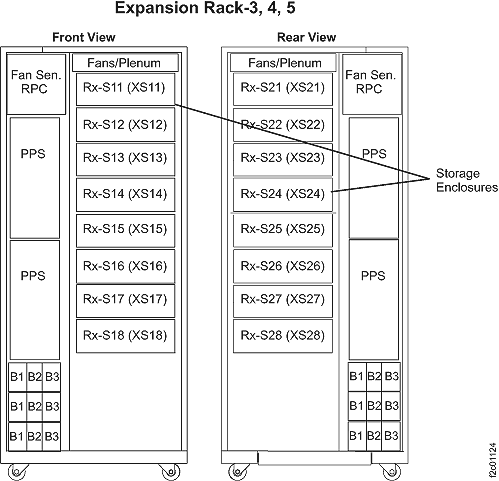

Figure 3. Physical location codes (expansion
racks-3,4,5)
