Rack brackets, sheet metal, and covers part numbers, Models 941, 94E

Use the figures and tables below to find information about parts such as rack brackets, sheet metal, and covers.

Note: The following part numbers are the most recent for this version of the Parts Catalog. Your storage facility or serviceable event FRU list might contain an older or newer part number. The parts-ordering system recognizes all valid part numbers and automatically substitutes an available part number as needed.

Figure 1. Rack cover parts

Table 1. Rack brackets, sheet metal, covers parts (Models 941, 94E)
Index	Part name	Part number
1	Cover, front, Models 941, 94E	45W4242
2	Screw	54G2882
3	Cover, side	22R5966²
4	Cover, rear, left³	22R6938
5	Screw (M5x8)	39J3128
6	Cover, rear, right³	22R6940
7	Pin, cover hinge	22R4298
8	Cover, side	22R5966²
9	Bracket, side cover-to-rack	N/A
10	Screw, side cover bracket	1621842
11	Bracket, bottom hinge	22R4959
12	Screw, bracket-to-frame	23R1520
13	Hinge, rear cover	18P4578
14	Screw, rear cover hinge-to-frame	23R1520
Notes: Two finger latches secure the early version cover (at the side of the rack). Two screws (P/N 31L7540) secure the later version cover (at the top of the rack). Viewed from the front.

Figure 2. Front cover latch parts

Table 2. Front cover latch parts (Models 941, 94E)
Index	Part name	Part number
1	Cover, front, aluminum	22R1404
1	Cover, front, steel	23R0275
2	Latch, front cover	21P4054
3	Screw, bracket-to-frame	22R0780
4	Bracket, front cover latch	41V0082

Figure 3. Front cover stop and lower hinge parts

Table 3. Front cover stop and lower hinge parts (Models 941, 94E)
Index	Part name	Part number
1	Cover, front, aluminum	22R1404
1	Cover, front, steel	23R0275
2	Screw, stop strap (M6x20)¹	22R3604
3	Washer, stop strap¹	22R3496
4	Bushing/spacer, stop strap¹	22R3495
5	Bracket, stop strap¹	22R3481
6	Screw, bracket/hinge-to-frame	23R1520
7	Bracket/hinge, front cover mount, lower	22R4959
Notes: Part of the stop strap kit P/N 23R1261.

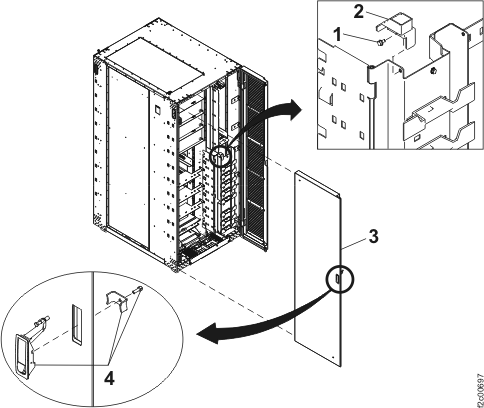

Figure 4. Rear cover latch parts

Table 4. Rear cover latch parts (Models 941, 94E)
Index	Part name	Part number
1	Screw, bracket-to-frame	23R1520
2	Bracket, rear cover latch	23R0871
3	Rear cover, right¹	23R1520
4	Latch, rear cover	21P4054
Notes: Viewed from the front.

Figure 5. Interrack spacer studs

Table 5. Interrack spacer studs (Models 941, 94E)
Index	Part name	Part number
1	Bolt, interrack spacer stud	1621545
2	Washer, interrack spacer stud (M8)	84X5850
3	Spacer stud, interrack	22R5046

Figure 6. Installing the interrack decorative covers

Table 6. Interrack decorative covers (Models 941, 94E)
Index	Part name	Part number
1	Cover, interrack decorative, side (one-piece early version)	22R4964
2	Cover, interrack decorative, side (two-piece/hinged later version)	23R1050¹
3	Cover, interrack decorative, top	22R4962
Notes: For details, see Figure 7.

Figure 7. Assembling the later version of the interrack decorative side covers

Table 7. Interrack decorative side covers (later version) (Models 941, 94E)
Index	Part name	Part number
1	Cover, interrack decorative, side (two-piece/hinged later version)	23R1050
2	Bracket	23R2044
3	Nut	84X4841

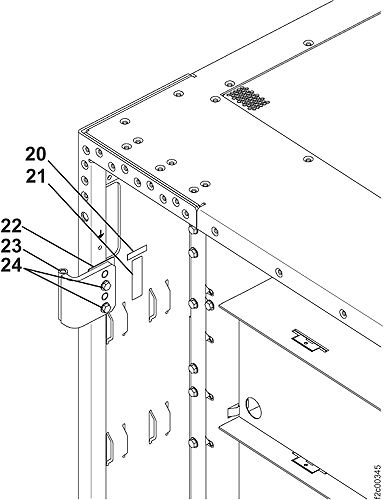

Figure 8. Rack labels

Table 8. Frames and covers labels (Models 941, 94E)
Index	Part name	Part number
20	Label, serial number	05J7400
21	Label, barcode serial number	44F0924
22	Shim, rear door adjustment	22R6151
23	Hinge, rear covers	18P4578
24	Screw, rear hinges	54G2882

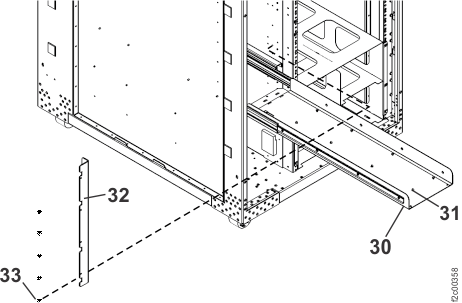

Figure 9. Rack shelves and brackets

Table 9. Frames and covers PPS shelf and bracket (Models 941, 94E)
Index	Part name	Part number
30	Shelf, PPS	22R4942
31	Screw, PPS shelf mounting (M5x6)	1621329
N/A	Bracket, PPS left (not shown)	22R4943
32	Bracket, PPS right	22R4944
33	Screw, PPS bracket (M5x8)	1621842

Figure 10. Rack shelves and brackets

Table 10. Frames and covers PPS shelf and bracket (Models 941, 94E)
Index	Part name	Part number
35	Housing assembly, RPC card	22R4940
36	Bracket, cable routing	22R6122
37	Rivets, RPC housing	04F1988

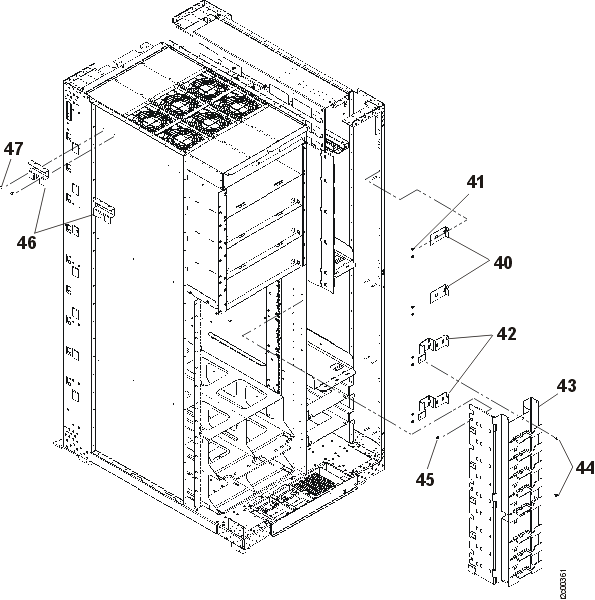

Figure 11. Rack shelves and brackets

Table 11. Frames and covers brackets and screws (Models 941, 94E)
Index	Part name	Part number
40	Bracket, cable routing	22R6135
41	Screw, cable routing bracket	1621842
42	Bracket, cable routing	22R6136
43	Bracket, bus bar	22R6132
44	Screw, bus bar	54G2882
45	Screw, bus bar	1624775
46	Bracket, side covers	N/A
47	Screw, side cover bracket	1621842

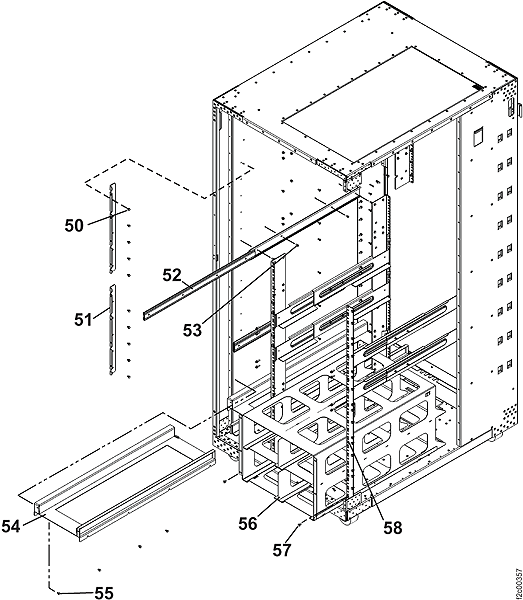

Figure 12. Rack shelves and wrappers

Table 12. Frames and covers shelves and wrappers (Models 941, 94E)
Index	Part name	Part number
50	Screw	1621842
51	Bracket, PPS left	22R4943
52	Slide, PPS	22R0780
53	Screw, PPS slide mounting (M5x8)	22R0780
54	Shelf, battery	22R4946
55	Screw, battery shelf	1621842
56	Wrapper, I/O enclosure	23R1338
57	Screw, wrapper	54G2882
58	Nut clip, wrapper	74F1823

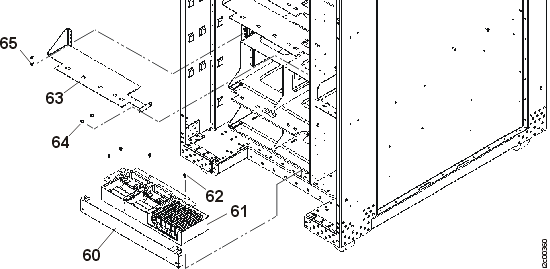

Figure 13. Rack shelves and brackets

Table 13. Frames and covers brackets and screws (Models 941, 94E)
Index	Part name	Part number
60	Tailgate bar	23R0039
61	Tailgate assembly, early version¹	N/A
61	Tailgate assembly, later version²	23R2456
62	Screw, tailgate assembly	1621842
63	Bracket, cable	22R4947
64	Screw, cable bracket	1624775
65	Screw, cable bracket	54G2882
Notes: See Figure 14 See Figure 15.

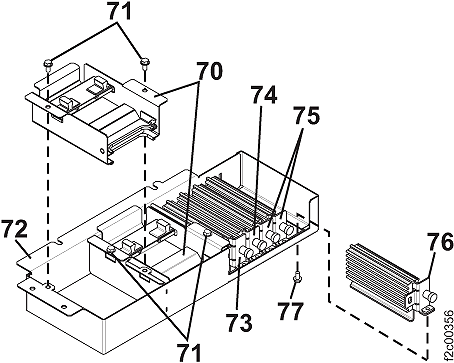

Figure 14. Tailgate parts (early version)

Table 14. Tailgate parts (early version) (Models 941, 94E)
Index	Part name	Part number
70	Bracket, strain relief	N/A
71	Screw, strain relief assembly mounting	N/A
72	Tailgate frame	N/A
73	Tailgate insert (clamping bracket)¹	N/A
74	Tailgate insert (clamping bracket)²	N/A
75	Tailgate insert (clamping bracket)³	N/A
76	Tailgate insert (clamping bracket)⁴	N/A
Notes: The rubber pad on the left side of the bracket is 11 mm (0.43 in.) thick. The right pad is 6 mm (0.24 in.) thick. The rubber pad on the left side of the bracket is 9 mm (0.35) thick. The right pad is 6 mm (0.24 in.) thick. The rubber pad on the left side of the bracket is 6 mm (0.24) thick. The right pad is 11 mm (0.43 in.) thick. The rubber pad on each side of the bracket is 11 mm (0.43 in.) thick.

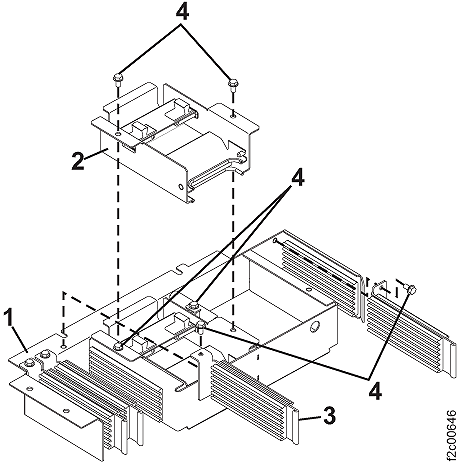

Figure 15. Tailgate parts (later version)

Table 15. Tailgate parts (later version) (Models 941, 94E)
Index	Part name	Part number
1	Tailgate frame	22R2457
2	Bracket, strain relief	22R4950
3	Tailgate insert (clamping bracket)	¹
4	Screw	54G2882
Notes: Call the next level of support.

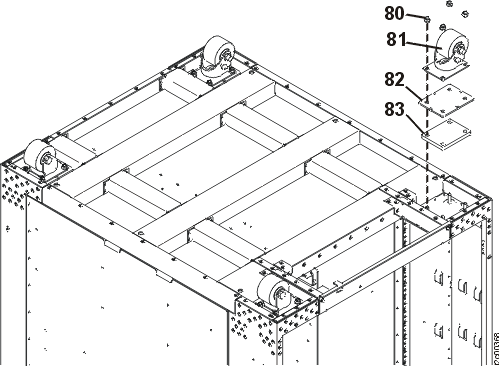

Figure 16. Caster parts

Table 16. Casters (Models 941, 94E)
Index	Part name	Part number
80	Nut, caster mounting	1622420
81	Caster	22R4156
82	Caster load plate	22R4155
83	Caster shock pad	22R4154
