DS8000 Service Documentation Version 6.3.3

Point-to-point cabling diagrams for FC-AL cables, Models 941, 94E

Use the point-to-point cabling diagrams below to route the FC-AL cables on a Model 941, with up to five 94E expansion racks.

Notes:
  1. Racks are shown with the maximum number of storage enclosures and device adapter cards. Your rack might contain fewer storage enclosures or device adapter cards.
  2. The figures that follow show the maximum number of racks in a storage facility with these rack models.
  3. The connector at each end of the same cable has the same designator (for example, A2).
  4. An example of one cable is shown with the dotted line.
  5. Some connectors are for cables that would go to an optional expansion rack. In that case, only one instance of that designator is on the rack.

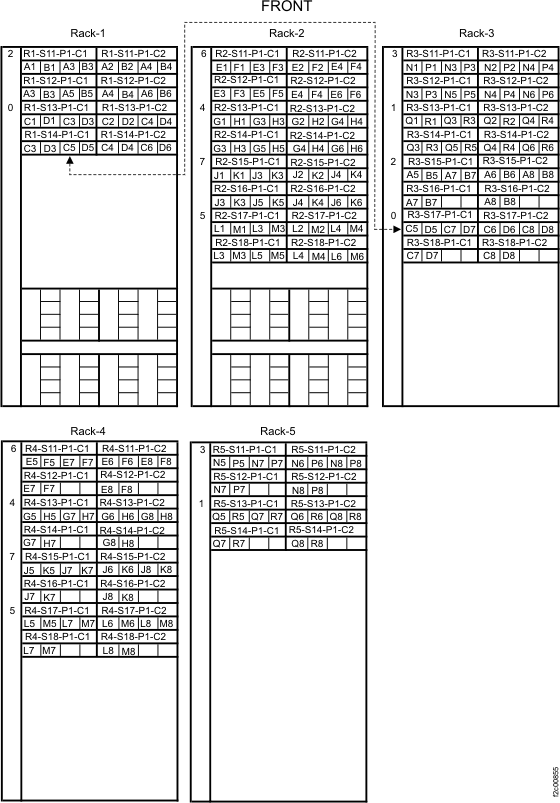

Figure 1. Point-to-point cabling diagram for the FC-AL cables (Model 941/94E) (front view)
FC-AL cabling diagram - 932 with four 9AE expansion racks (front view)

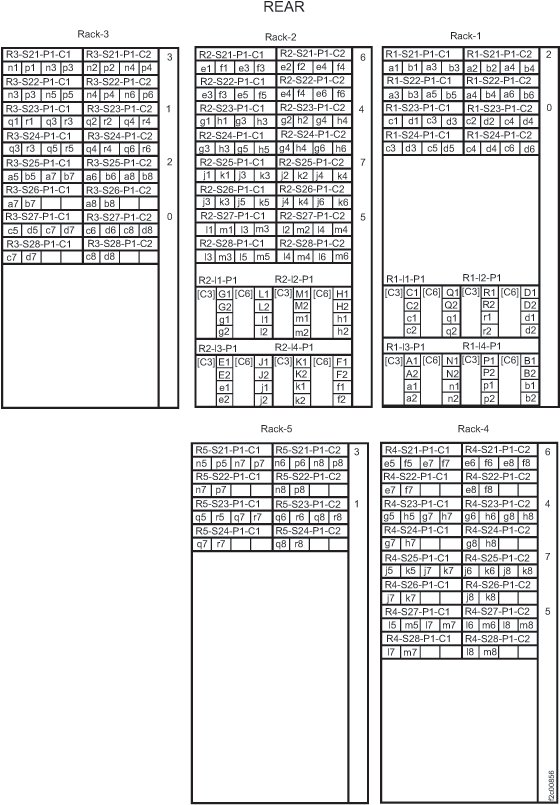

Figure 2. Point-to-point cabling diagram for the (FC-AL cables - 941/94E) (rear view)
FC-AL cabling diagram - 932 with four 9AE expansion racks (front view)
