Device adapter pair IDs – Models 980, 98B

Device adapter pair IDs identify either the two device adapter cards in an I/O enclosure, or a pair of storage enclosure RAID controllers.

For FC-AL storage enclosures

A device adapter pair ID identifies the two device adapter cards in the I/O enclosures. The device adapter cards provide redundancy for the FC-AL loops that connect to one or more storage enclosure pairs.

For high-performance flash enclosures

A device adapter pair ID identifies the pair of storage enclosure RAID controllers and their associated interfaces to the I/O enclosures.

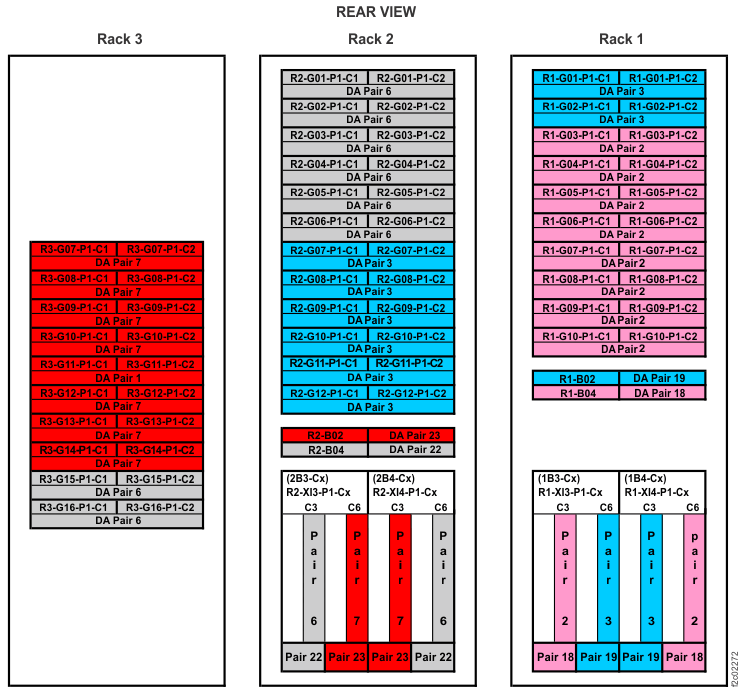

Figure 1. Device adapter pair IDs for storage enclosures (Models 980, 98B) (rear view, racks 1, 2, 3)
