DS8000 Service Documentation Version 6.3.3

MAP1100 Section-6 HMC Peer Domain

Procedure

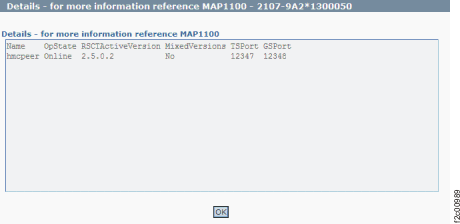

  1. Figure 1 is an example of the detail window for the HMC peer domain (in this example, an error condition might not be shown).
    Figure 1. Window: HMC peer domain details
    Window: HMC peer domain details
  2. Description: Check if there is an HMC peer domain present and online.
  3. Action: Contact your next level of support. (The condition might have already called home if the code level that is installed has Health Check.)
  4. For the next level of support only: The command :/usr/sbin/rsct/bin/lsrpdomain is run and is looking for the HMC peer domain named hmcpeer to be online. If hmcpeer does not exist, this usually indicates that the DS8000® management console (HMC) extensions code is not properly installed.
